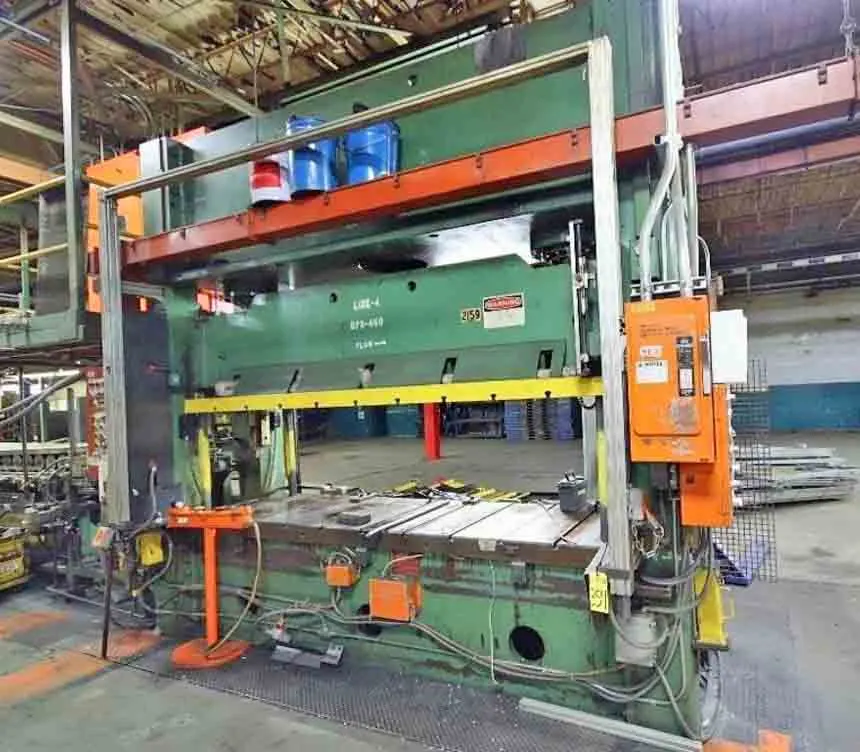

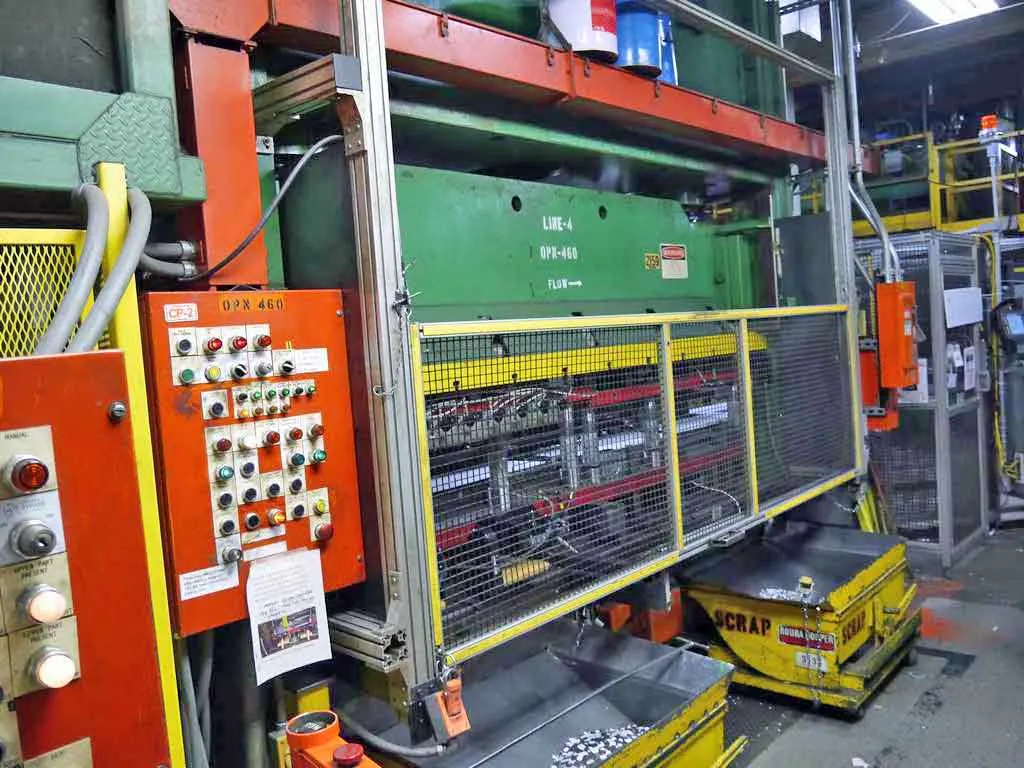

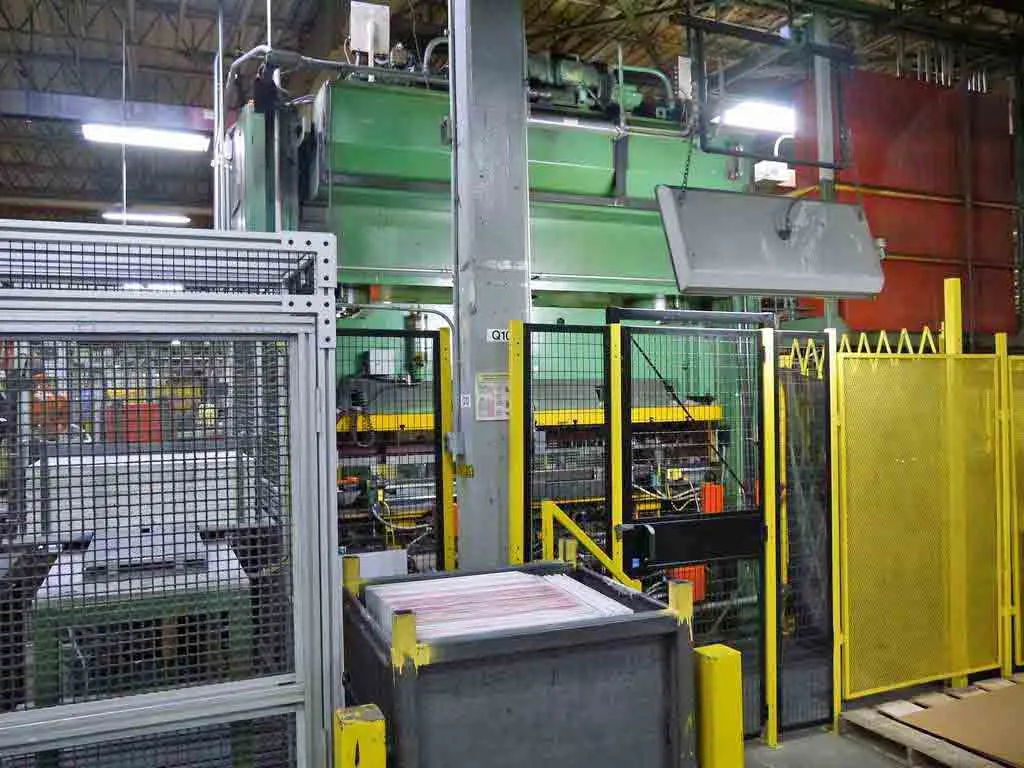

Navigate left200 Ton Pacific Hydraulic Press - Front view showing dual cylinder gib guided frame200 Ton Pacific Hydraulic Press - Side view of T-slotted bed and slide area200 Ton Pacific Hydraulic Press - Allen Bradley PLC controls and light curtainsNavigate right

200 Ton Pacific Model 200-D-10-36 Downstroke Self Contained Hydraulic Press

Serial No.: 8380 (1978) — Gib Guided, Dual Cylinder, T-Slotted Bed and Slide

Bed Area (Nominal) 123" L-R x 36" F-B (T-Slotted F-B)
Slide Area (Nominal) 123" L-R x 36" F-B (T-Slotted F-B)
Dist. Between Housings L-R
Stroke of Gib Guided Slide 0" — 18" Max.
Daylight Opening 30" Max.
Max. Upper Die Weight 10,000 lbs
Speeds Approx. 187 IPM Fast Closing
89 IPM Slow Close 34 IPM Pressing 70 IPM Slow Return 176 IPM Fast Return
Power Unit (Top Rear) 30 HP 460/3/60 Motor Driving Hydraulic Unit
Weight Approx. 43,000 lbs
Physical Dimensions 13' L-R x 5' F-B x 26' H
Controls Push Button Operation with Stroke, Pressure and Speed Control. Allen Bradley PLC Added in 2000. Light Curtains.

Contact for Pricing

Request a Quote Call (847) 894-3434

Frequently Asked Questions

What is a 200 ton hydraulic press used for?

A 200 ton hydraulic press is used for forming, bending, stamping, punching, and assembly operations across manufacturing industries. The Pacific 200-D series is commonly found in automotive, aerospace, appliance, and general metal fabrication shops for medium-duty pressing applications.

What condition is this used Pacific 200-D-10-36 hydraulic press in?

This Pacific Model 200-D-10-36 was manufactured in 1978 (Serial No. 8380). It is a gib guided, dual cylinder press with T-slotted bed and slide. The Allen Bradley PLC controls were upgraded in 2000, and light curtains have been added for operator safety.

What are the main specifications of this 200 ton press?

This press features a 123" x 36" T-slotted bed area, 30" maximum daylight opening, 18" maximum stroke, 34 IPM pressing speed, a 30 HP hydraulic power unit, and weighs approximately 43,000 lbs. Overall dimensions are 13' L-R x 5' F-B x 26' H.

Does Gerrard Group offer shipping and installation?

Yes. Gerrard Group Inc provides full rigging, transportation, and installation services for heavy industrial equipment across the United States, Mexico, and Canada. Contact us at (847) 894-3434 for a quote.
