300 Ton Pacific Model Hydraulic Press

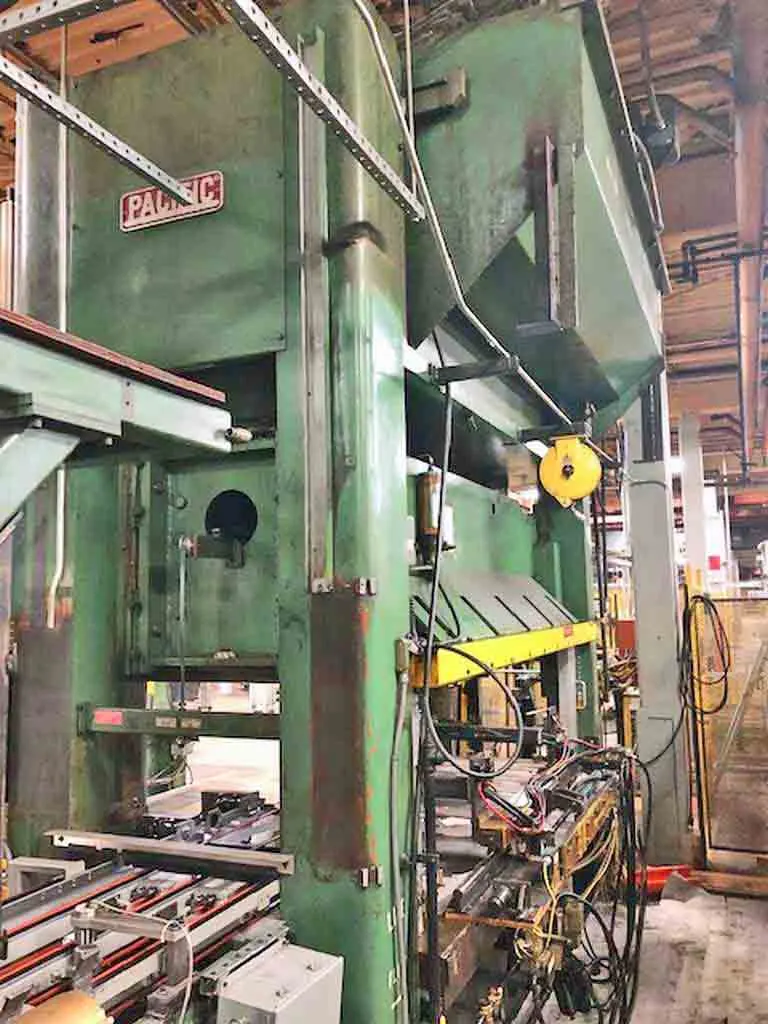

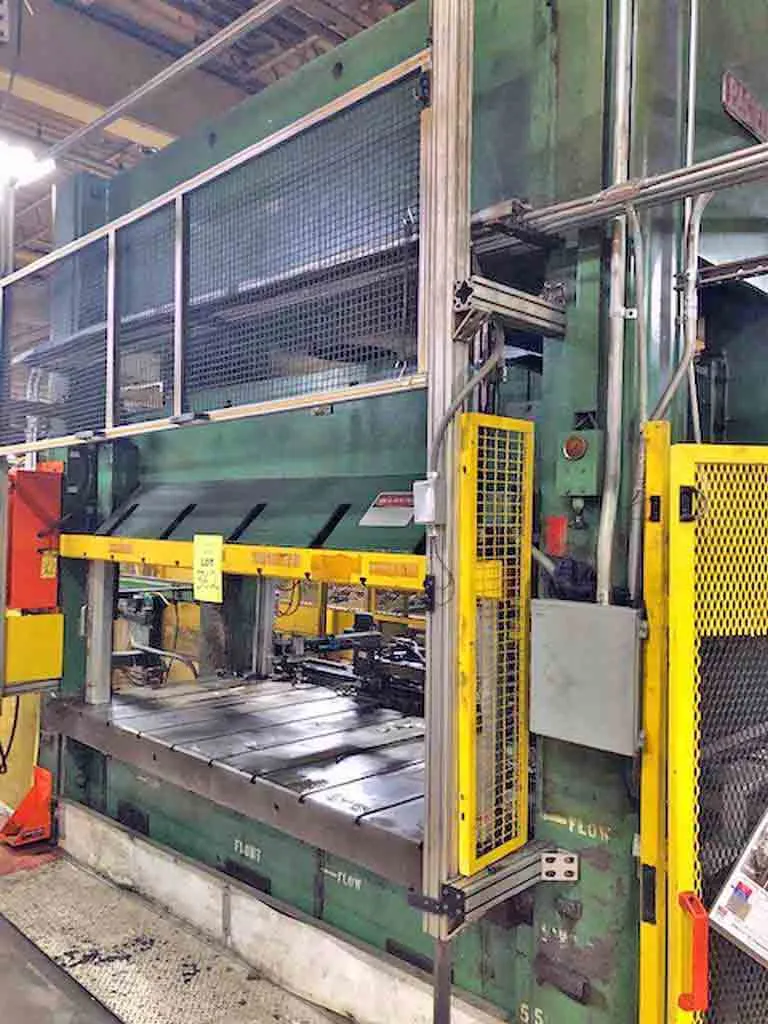

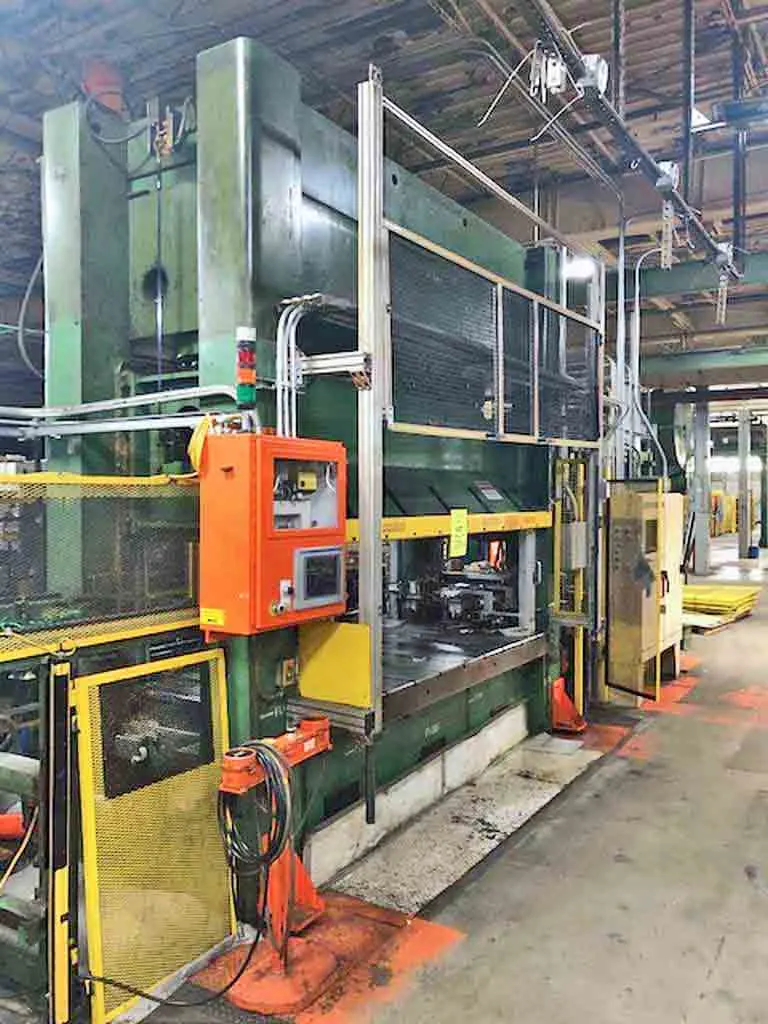

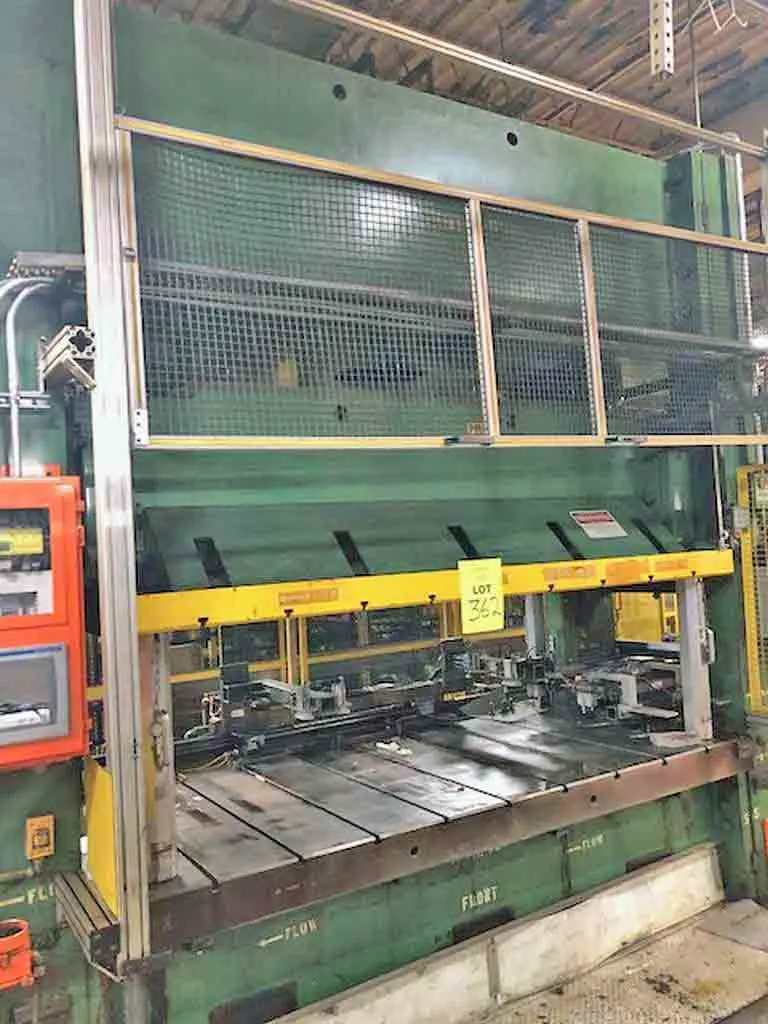

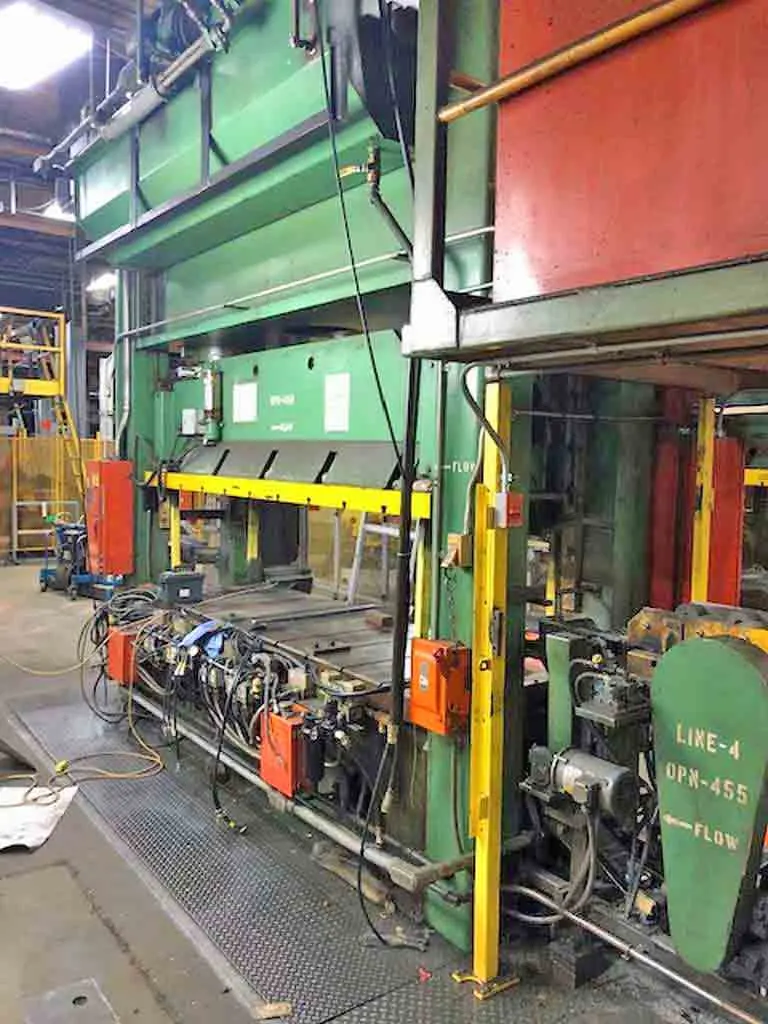

Navigate left300 Ton Pacific Hydraulic Press - Front view of downstroke press300 Ton Pacific Hydraulic Press - Side profile showing frame height300 Ton Pacific Hydraulic Press - Control panel with Allen Bradley PLC300 Ton Pacific Hydraulic Press - T-slotted bed detail 123 x 60 inches300 Ton Pacific Hydraulic Press - 40 HP hydraulic power unit300 Ton Pacific Hydraulic Press - Full installation view in facilityNavigate right

300 Ton Pacific Model 300-D-10-60 Downstroke Self Contained Hydraulic Press

Serial No.: 8378 (1978) — Gib Guided, Dual Cylinder, T-Slotted Bed and Slide

Bed Area (Nominal) 123" L-R x 60" F-B (T-Slotted F-B)
Slide Area (Nominal) 123" L-R x 60" F-B (T-Slotted F-B)
Dist. Between Housings 28" L-R
Stroke of Gib Guided Slide 0" — 18" Max.
Daylight Opening 33" Max.
Speeds Approx. 215 IPM Fast Closing
80 IPM Slow Close 25 IPM Pressing 48 IPM Slow Return 132 IPM Fast Return
Power Unit (Top Rear) 40 HP 460/3/60 Motor Driving Hydraulic Unit
Weight Approx. 73,000 lbs
Physical Dimensions L-R x 5' F-B x H

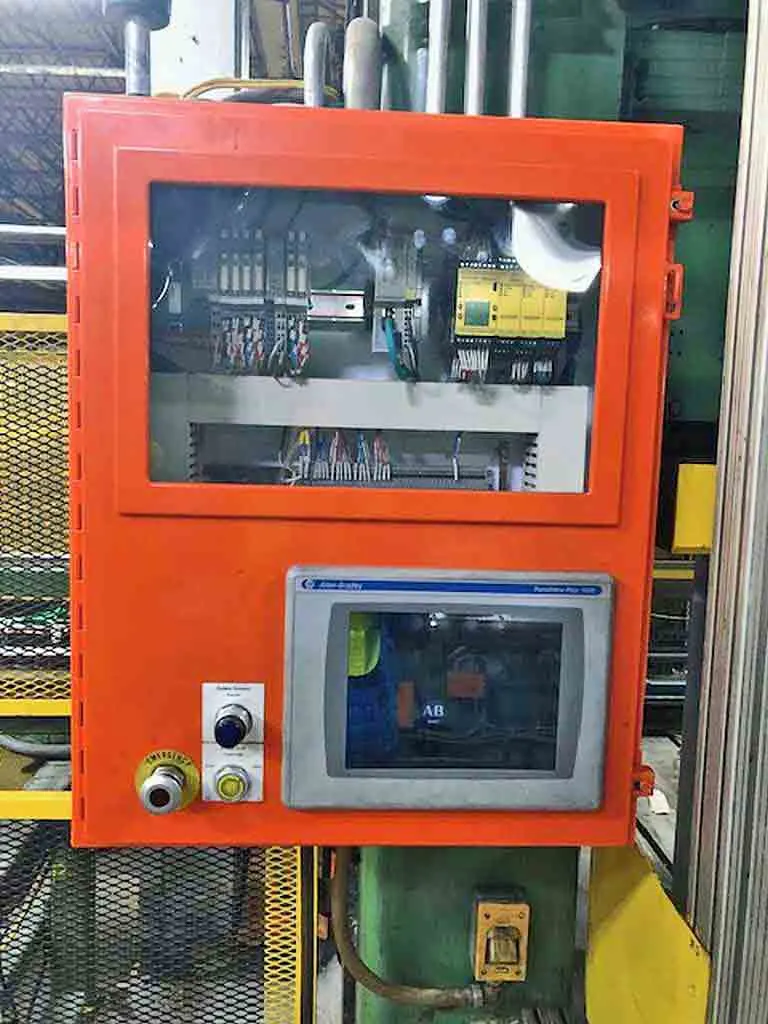

Controls Push Button Operation with Stroke, Pressure and Speed Control. Allen Bradley PLC Added in 2000. Light Curtains.

Contact for Pricing

Request a Quote Call (847) 894-3434

Frequently Asked Questions

What is a 300 ton Pacific hydraulic press used for?

A 300 ton Pacific hydraulic press is used for heavy-duty forming, stamping, blanking, and deep drawing operations in industries such as aerospace, automotive, metal fabrication, and appliance manufacturing. The 300-ton capacity handles medium to large parts with precision force control.

What is the condition of this used Pacific 300-D-10-60 press?

This Pacific Model 300-D-10-60 is a used press manufactured in 1978 (Serial No. 8378). It features Allen Bradley PLC controls that were upgraded in 2000, light curtains for operator safety, and is gib guided with dual cylinders for consistent ram travel.

What are the key specifications of this 300 ton hydraulic press?

Key specs include a 123" x 60" T-slotted bed and slide area, 33" maximum daylight opening, 18" maximum stroke, pressing speed of 25 IPM, and a 40 HP hydraulic power unit. The press weighs approximately 73,000 lbs.

Can this press be shipped nationwide?

Yes. Gerrard Group Inc arranges rigging, transportation, and installation of heavy industrial machinery throughout the United States, Mexico, and Canada. Contact us for a shipping and installation quote.

Related Equipment

200 Ton Pacific Hydraulic Press 600 Ton Pacific Hydraulic Press
