Peddinghaus PeddiBot-1200 6-Axis Robotic CNC Cutting Machine

What is the Peddinghaus PeddiBot-1200 used for?

The PeddiBot-1200 is a 6-axis robotic CNC thermal cutting machine built for structural steel fabrication. It plasma cuts and layout marks beam, tube, channel, and angle profiles — as well as plate — on all four sides in a single setup, handling copes, holes, weld prep bevels, slots, and part marking for beam lines and fabrication shops.

What plasma torch and robot does the PeddiBot-1200 use?

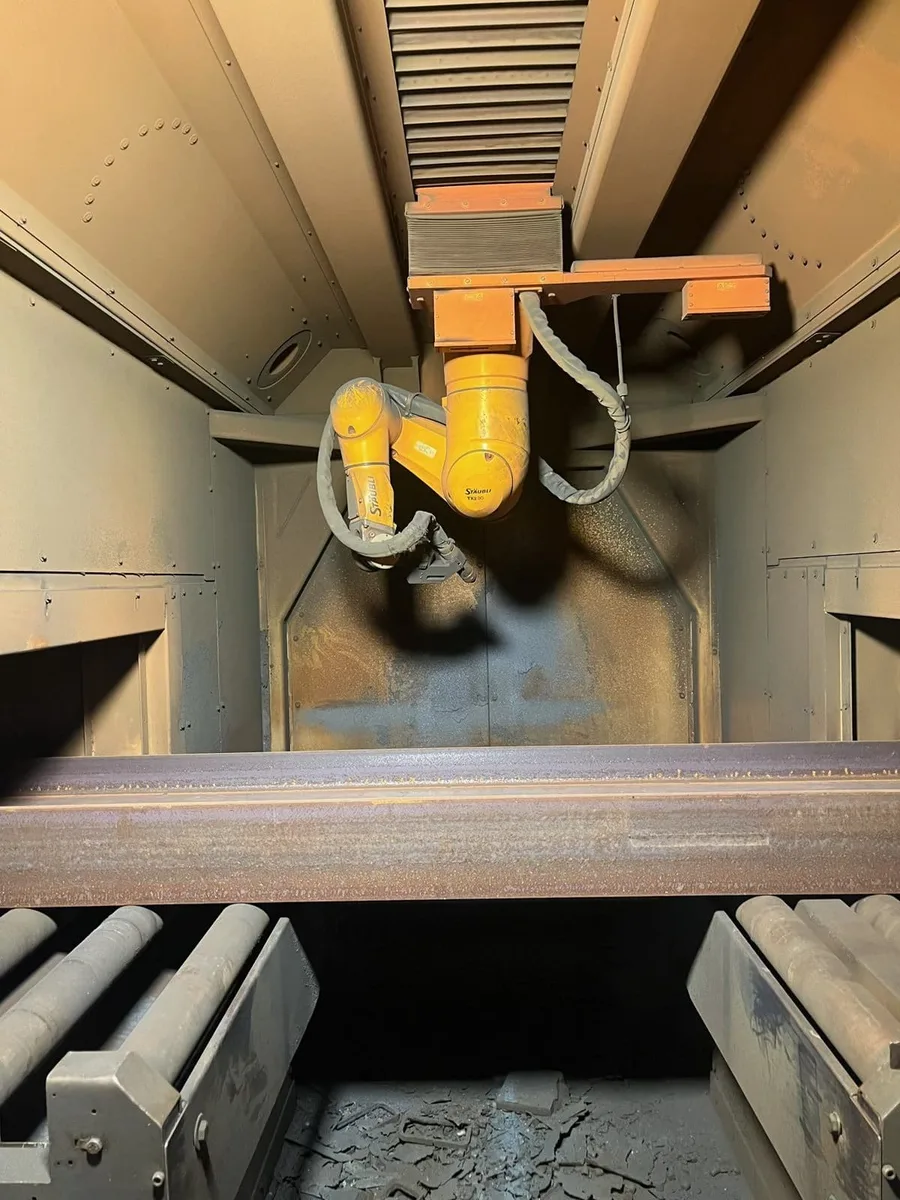

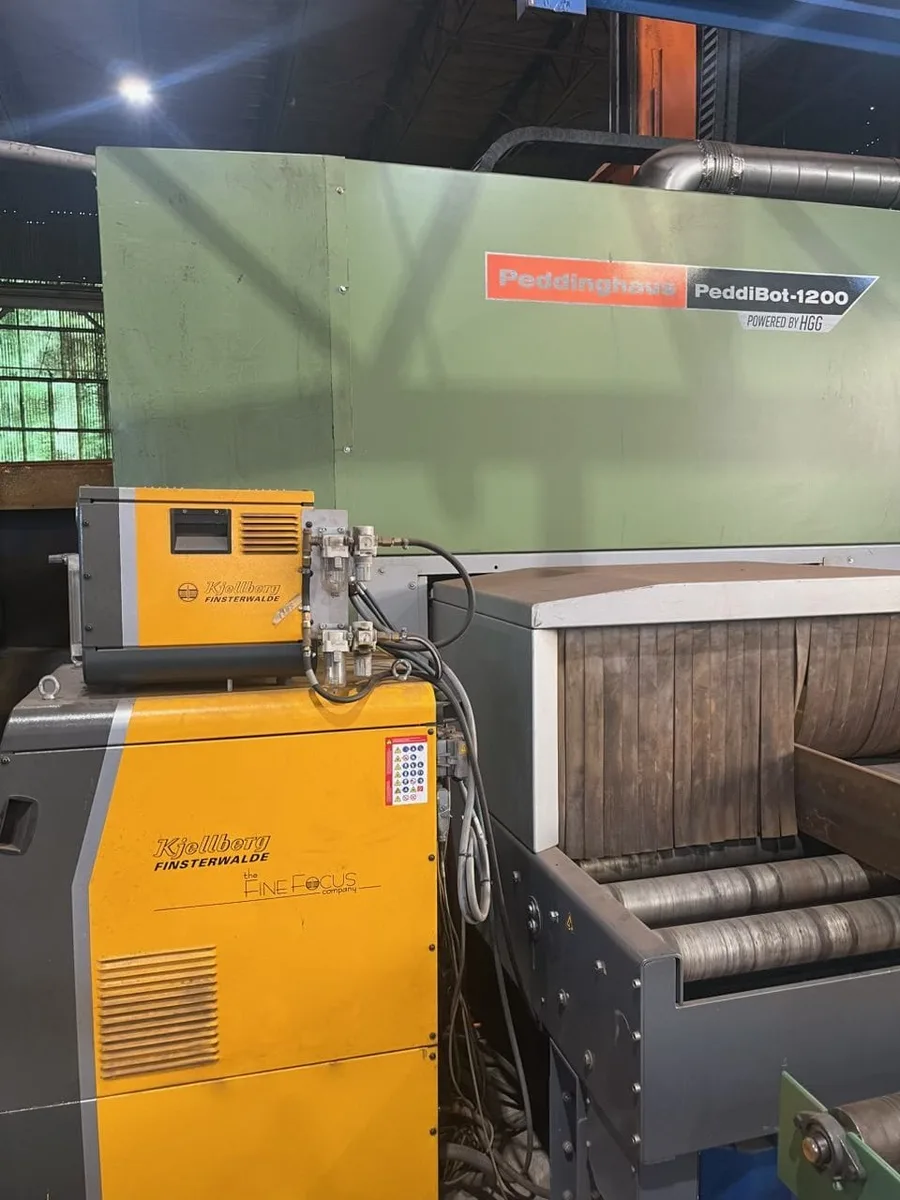

This 2022 unit is equipped with a Kjellberg HiFocus 440i plasma torch rated at 440 amps, mounted on a 6-axis Stäubli robot arm. It includes Raptor 3D CAD/CAM software integration, a profile scanning system, trailing edge detection, and machine housing for clean, accurate cutting and 4-sided layout marking.

What material sizes can the PeddiBot-1200 process?

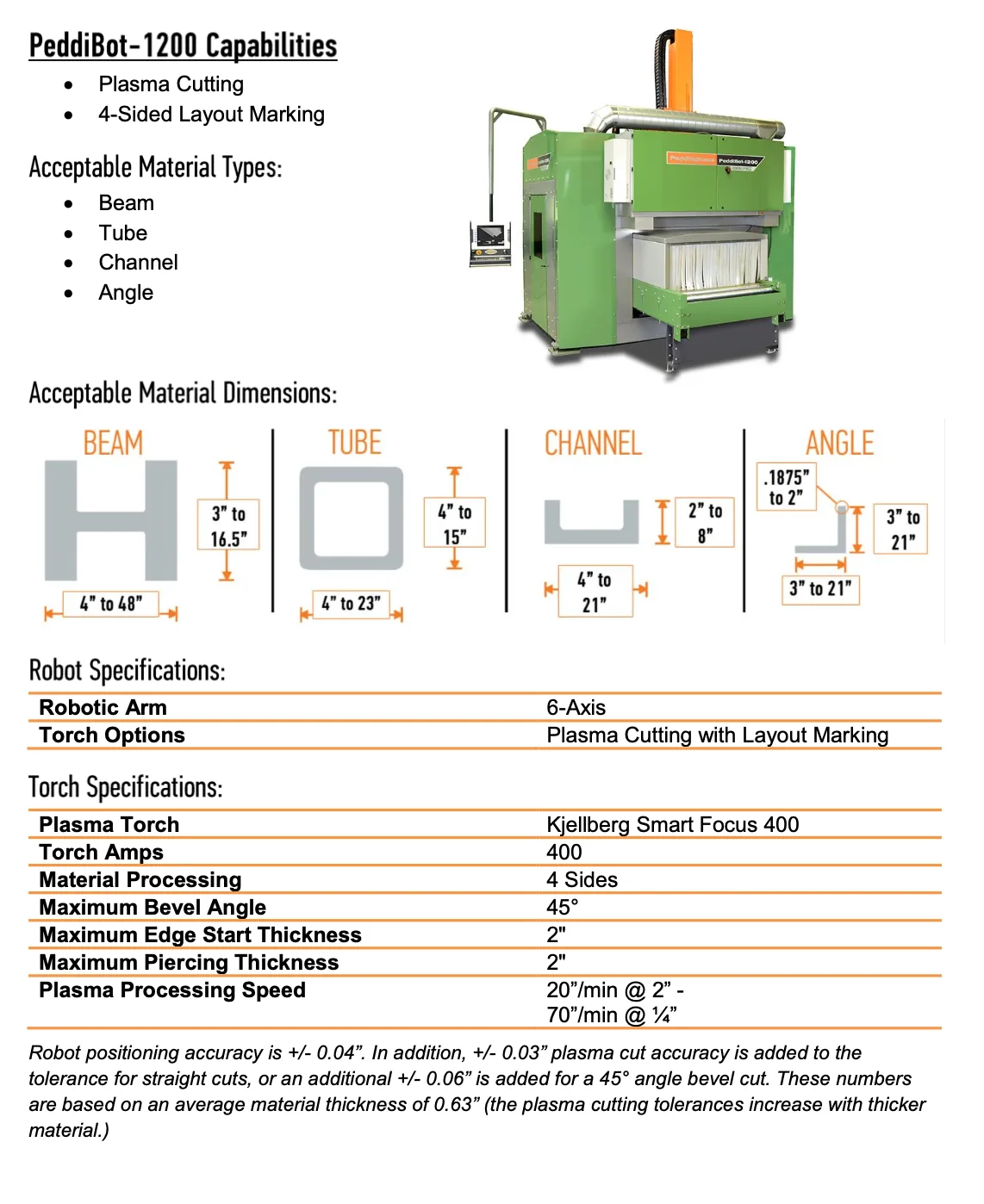

Profiles range from a minimum of 3" x 3" up to a maximum of 48" x 16.5", with material thickness from 3/16" to 2" and a maximum profile weight of 26,455 lbs (12,000 kg). It also processes plate up to 48" wide x 120" long within a 48" x 59" effective cutting zone, with bevels up to 45°.

Does Gerrard Group offer shipping and installation?

Yes. Gerrard Group Inc provides full rigging, transportation, and installation services for heavy industrial equipment across the United States, Mexico, and Canada. Contact us at (847) 894-3434 for a quote.
