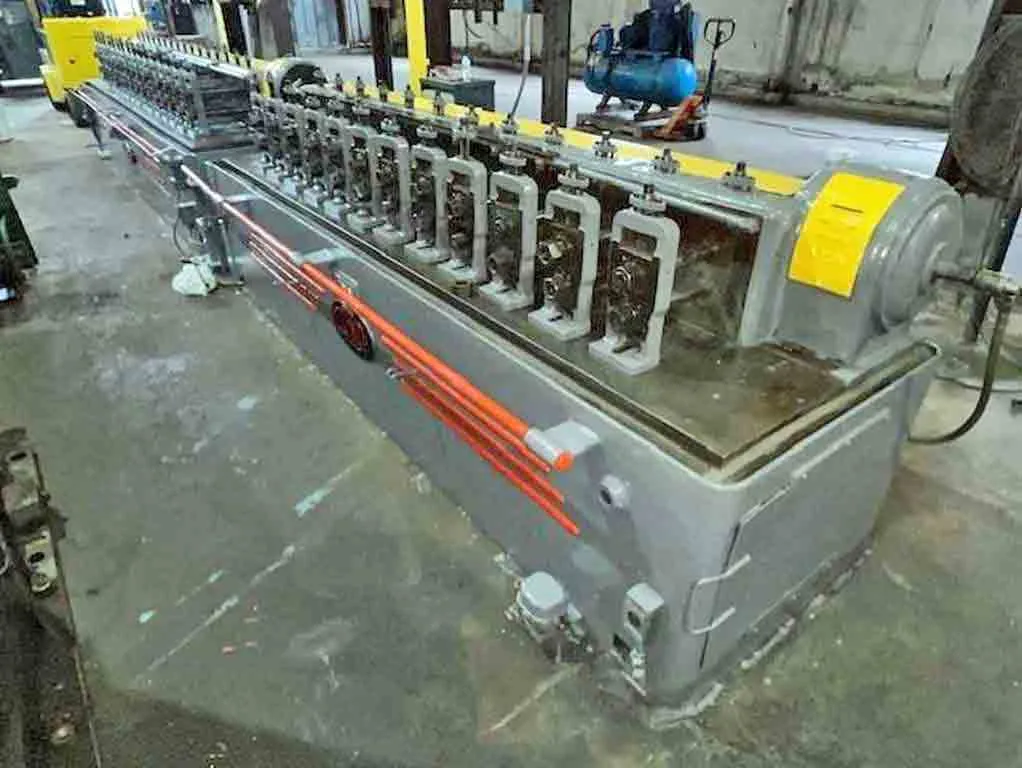

28-Stand Tishken Rollformer — 8"/10" x 1.50"

Ref #: 11868-HK — Tishken, Detroit

Overview

ManufacturerTishken (Detroit)
Total Stands28 (12 + 16)
Shaft Diameter1.500"
Roll Space8.00" (Sec. 1) / 10.00" (Sec. 2)
ConditionUsed — one top shaft missing on 16-stand section
LocationIn Storage — Toledo, OH

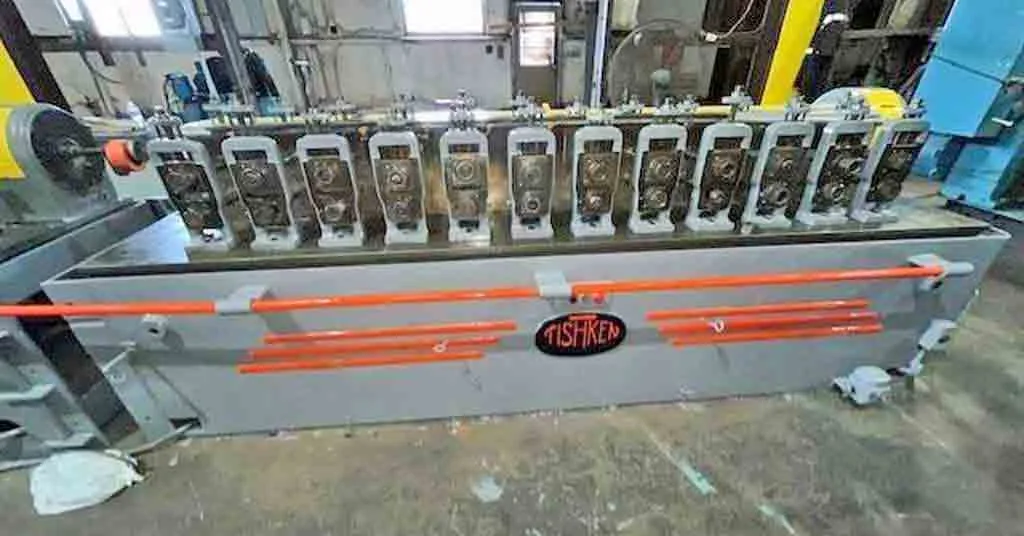

Section #1 — Model 12-HMW-1 1/2

Number of Stands12
Shaft Diameter1.500"
Roll Space8.00"
Horizontal Centers9.00"
Center of Bottom Spindle to Base4.500"
Vertical Adjustment4.00"
Adjustment Range4" to 8"
Overall Size142" L x 48" W x 47" H

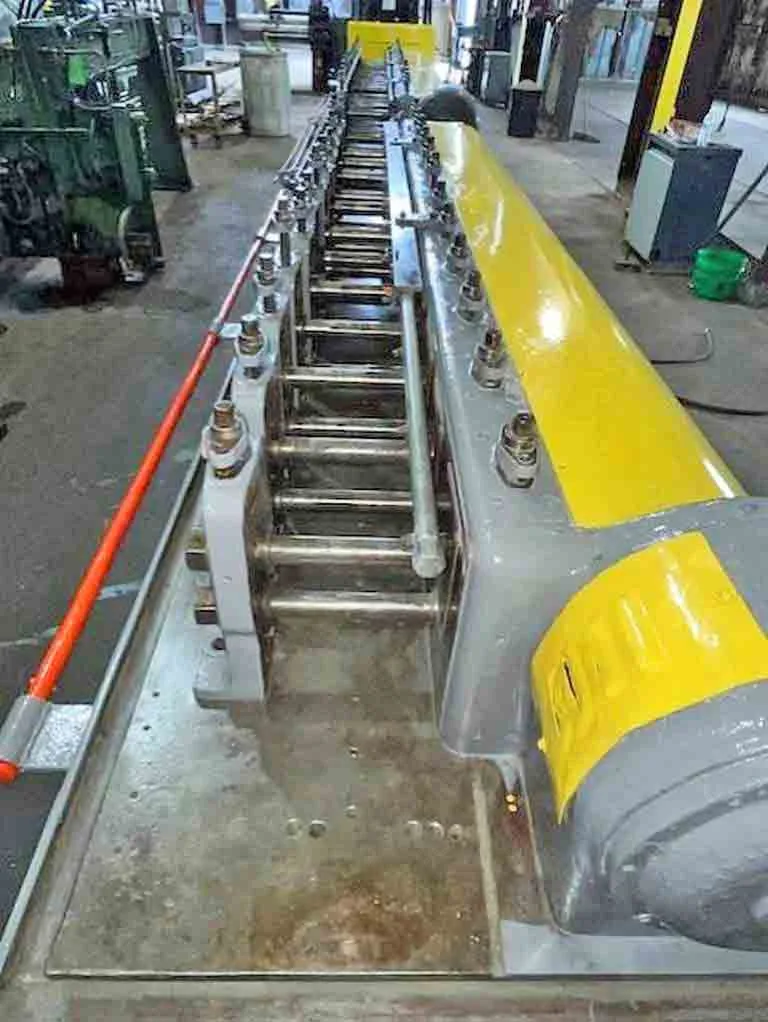

Section #2 — Model 16-HMW-1 1/2

Number of Stands16
Shaft Diameter1.500"
Roll Space10.00"
Horizontal Centers9.00"
Center of Bottom Spindle to Base4.50"
Vertical Adjustment4.00"
Adjustment Range4" to 8"
Drive Motor15 HP, 1150 RPM
Overall Size178" L x 48" W x 47" H

Contact for Pricing

Request a QuoteCall (847) 894-3434

Frequently Asked Questions

What is a Tishken rollformer used for?

A rollformer progressively shapes coil or sheet metal into a finished profile by passing it through a series of consecutive roll stands. This 28-stand Tishken line is suited to producing studs, track, channels, angles, trim, and other long metal profiles in high volume. Tishken (Detroit) is a long-established builder of heavy-duty rollforming equipment.

What are the specifications of this 28-stand Tishken line?

The line has two sections. Section #1 (Model 12-HMW-1 1/2) has 12 stands with 8.00" roll space; Section #2 (Model 16-HMW-1 1/2) has 16 stands with 10.00" roll space. Both use 1.500" diameter shafts on 9.00" horizontal centers with 4.00" vertical adjustment and a 4" to 8" adjustment range. Section #2 includes a 15 HP, 1150 RPM drive motor.

What condition is this rollformer in and where is it located?

This is a used Tishken rollformer (Ref #11868-HK) currently in storage in Toledo, OH. Please note that one top shaft is missing on the 16-stand section. It is available for inspection by appointment; contact Gerrard Group for details.

Does Gerrard Group offer shipping and installation?

Yes. Gerrard Group Inc provides full rigging, transportation, and installation services for heavy industrial equipment across the United States, Mexico, and Canada. Contact us at (847) 894-3434 for a quote.
