52" x 6.00" x 30,000# Paxson Coil Slitting Line

Ref #: 10846-C — Paxson · Loop Type, Driven Slitter

Line Specifications

ManufacturerPaxson
Capacity52" Wide x 30,000 lb Coils
StyleLoop Type, Driven Slitter
Coil Size20" I.D. x 72" O.D.
DirectionLeft to Right
Speed350 – 400 FPM

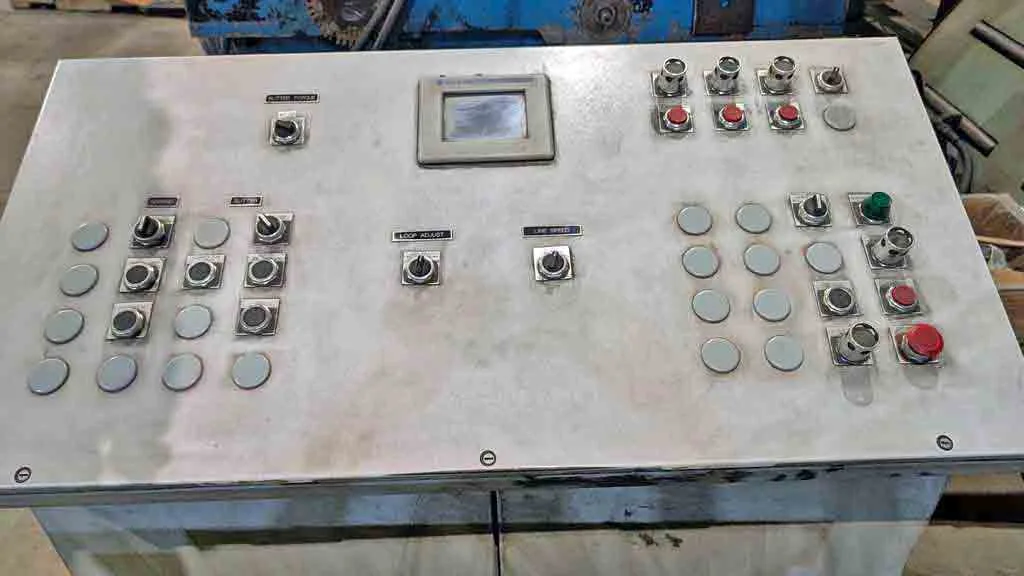

ControlsUpgraded in 2009 — New PLC and Control Pulpit
Condition / LocationUsed — In Storage, Toledo, OH

Line Components

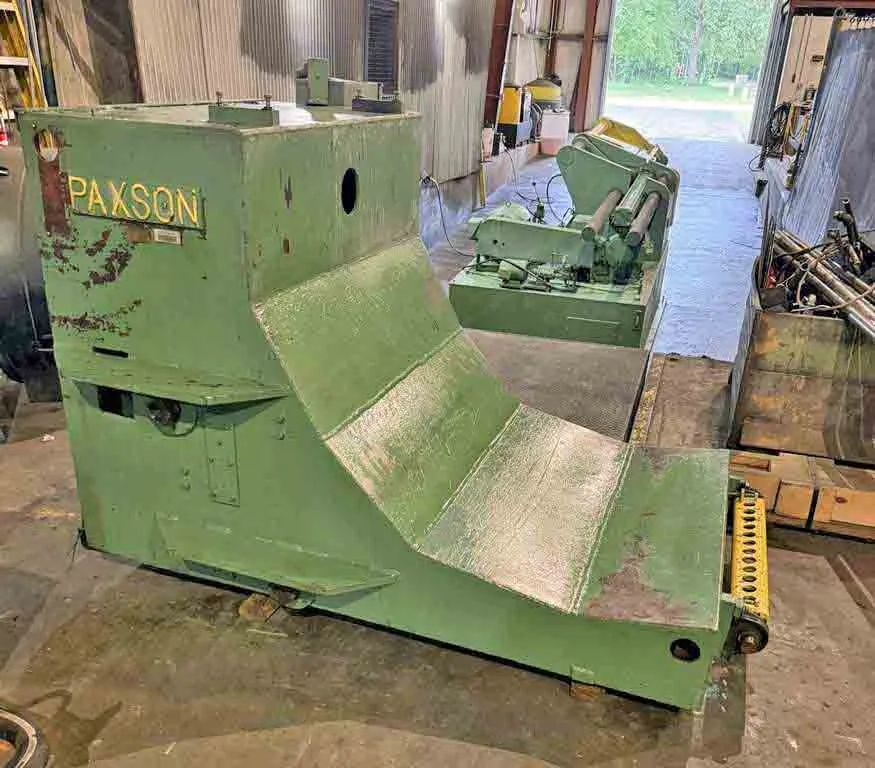

Entry Coil CarAbove ground, "L" type, self-contained hydraulics, 7.5 HP AC motor (1750 RPM, 230/460 V)

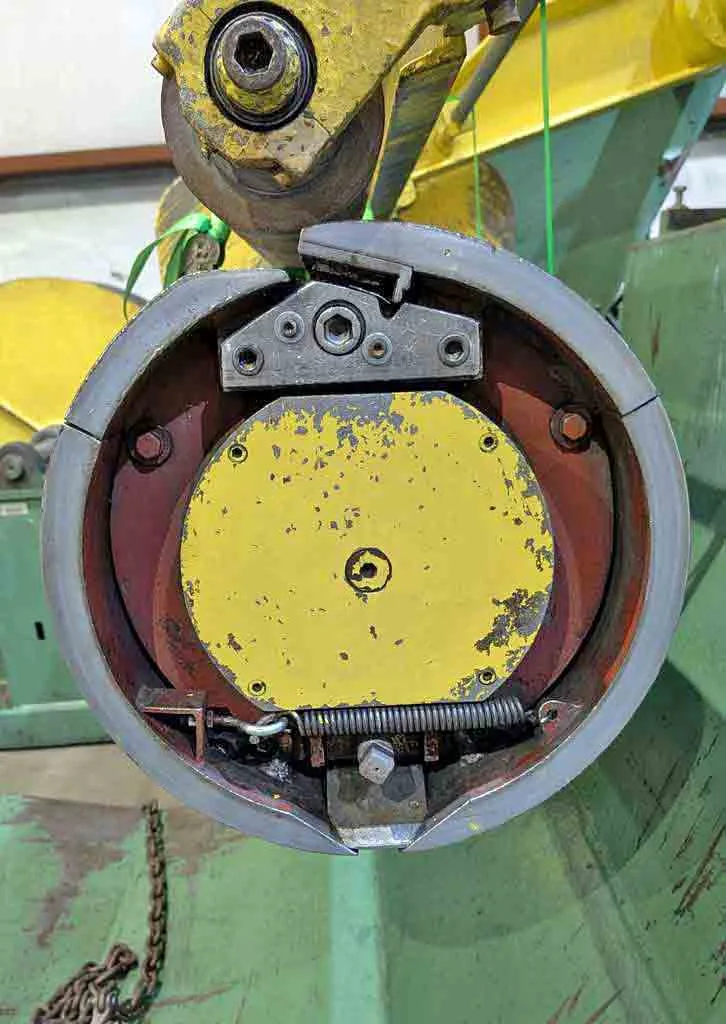

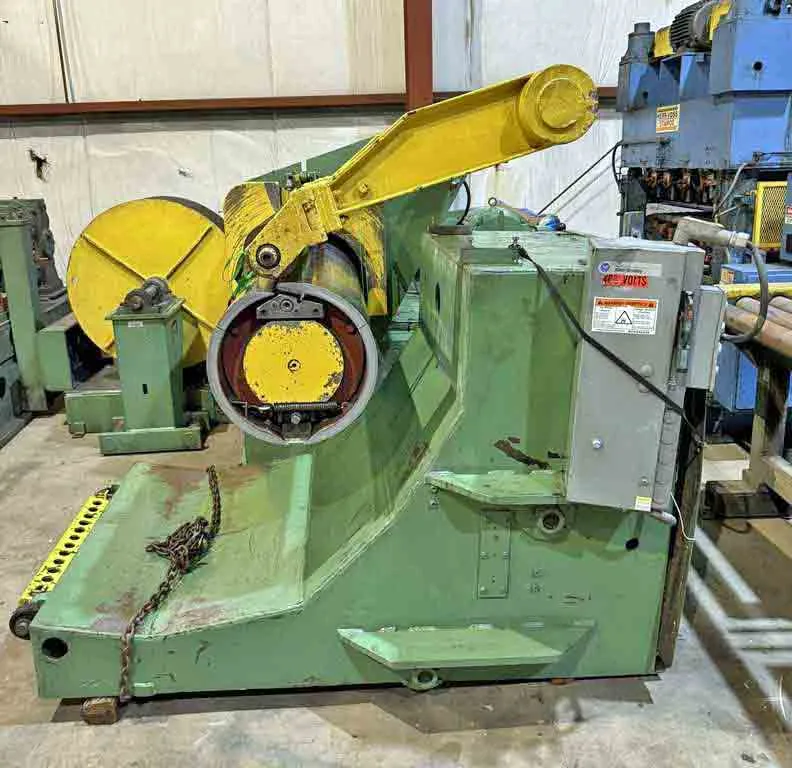

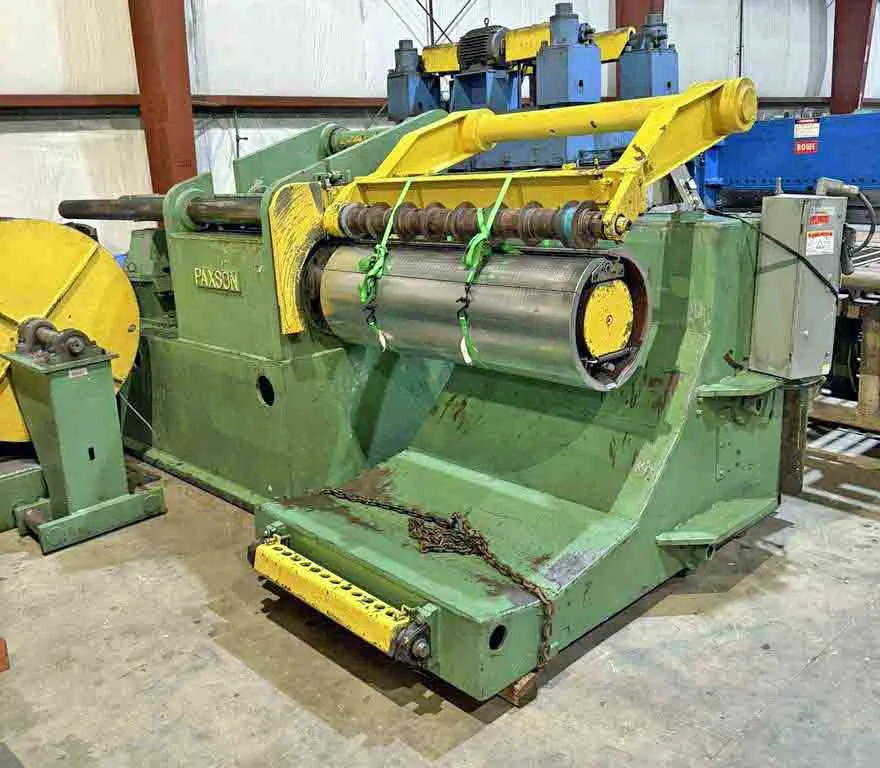

UncoilerExpanding mandrel type, hydraulic expansion, water-cooled drag brake, sliding base, powered holddown arm
PeelerHydraulic peeler table with pinch rolls

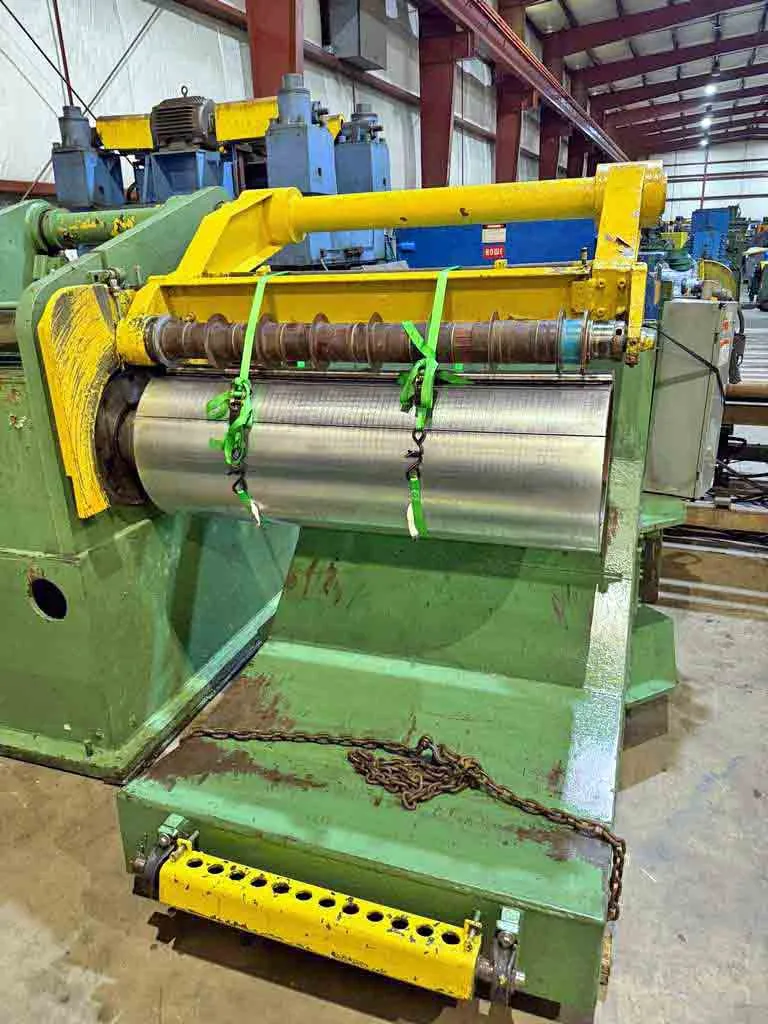

Slitter Heads52" arbor face, (2) drop-in heads, 6" diameter arbors, entry side guides, 75 HP Reliance DC drive motor (1750 RPM, 500 V)
Looping PitIncluded
Cross Over TableIncluded

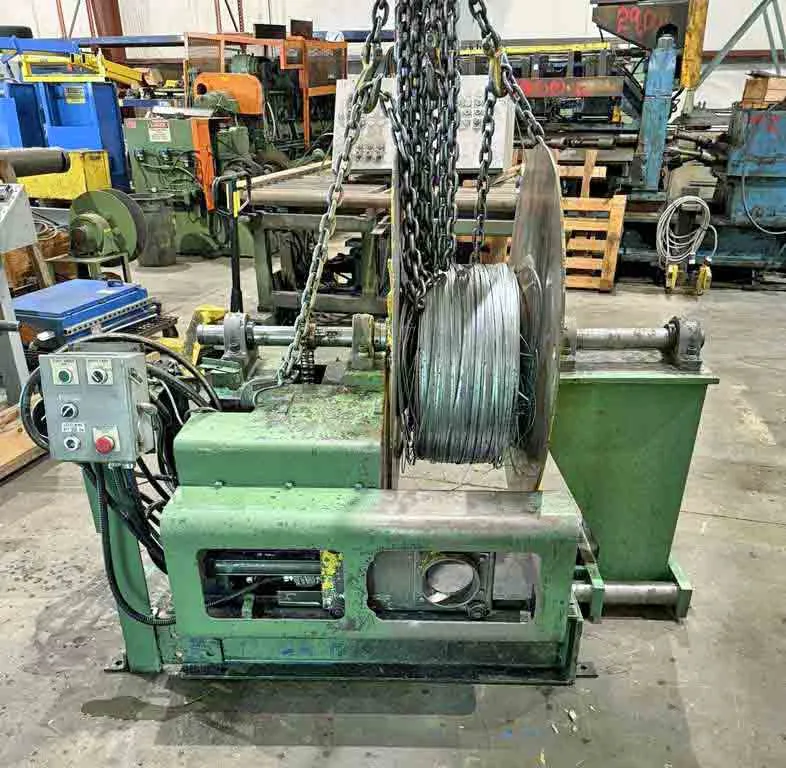

Scrap Winder(1) self-dumping, oscillating scrap guide, hydraulic motor driven

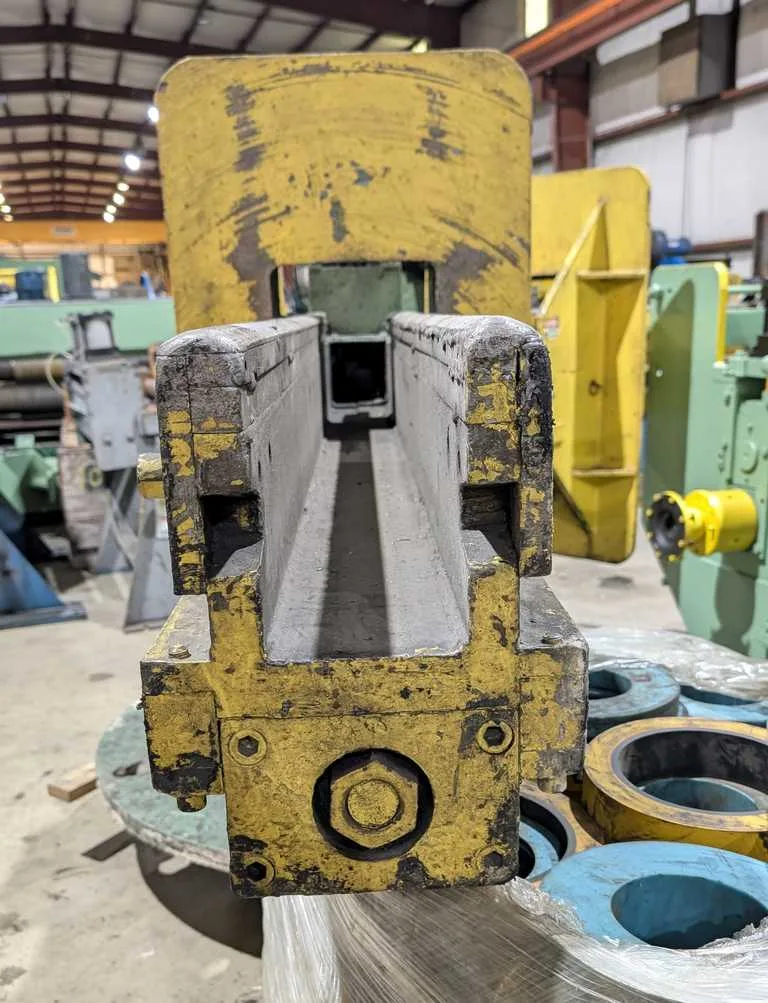

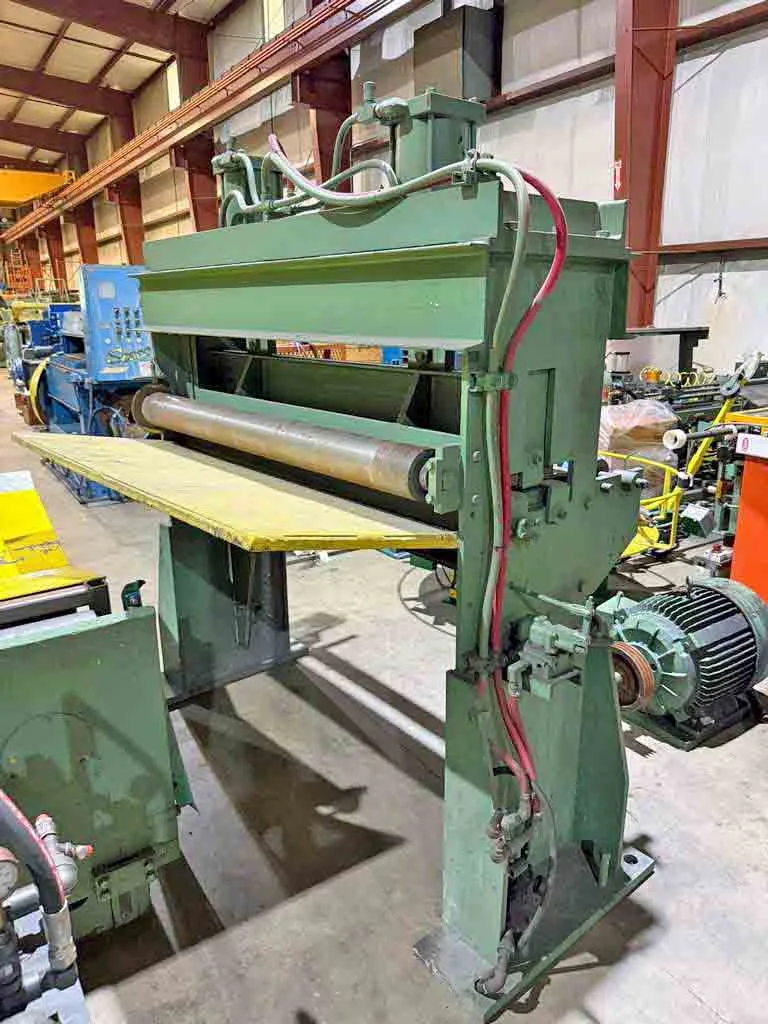

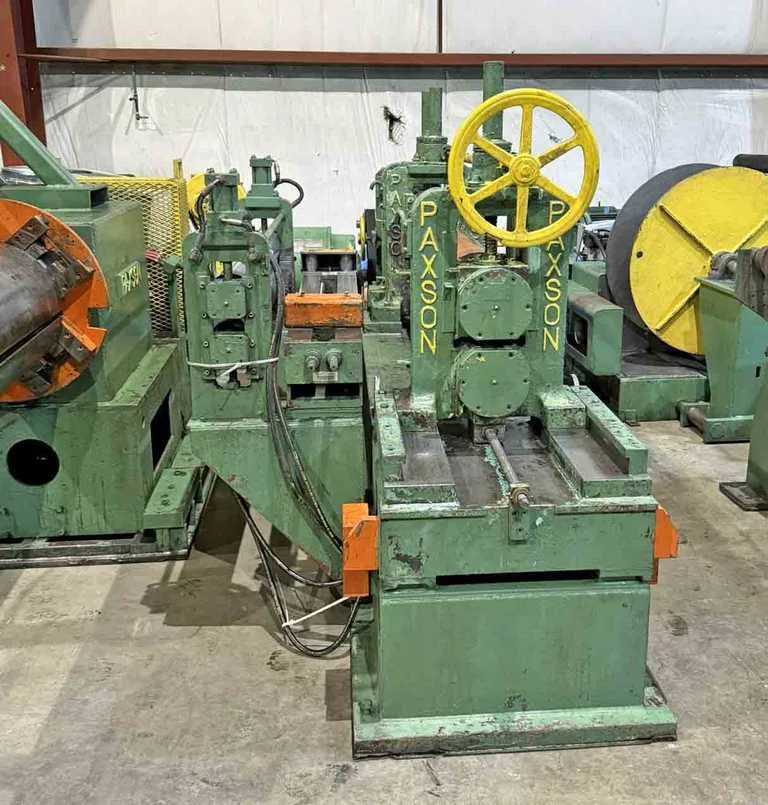

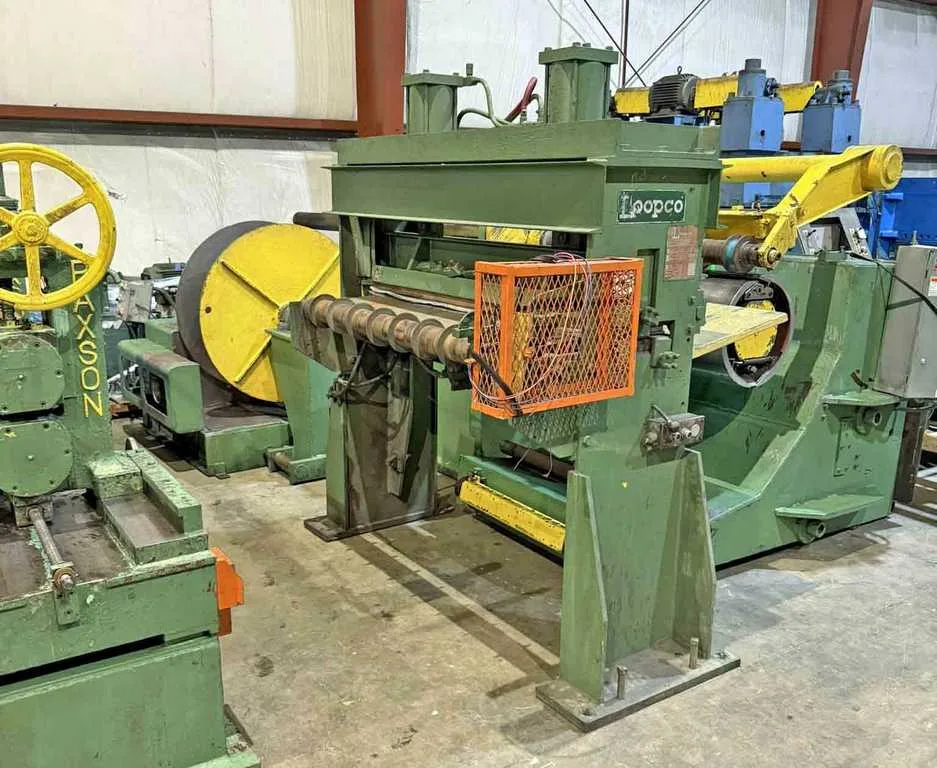

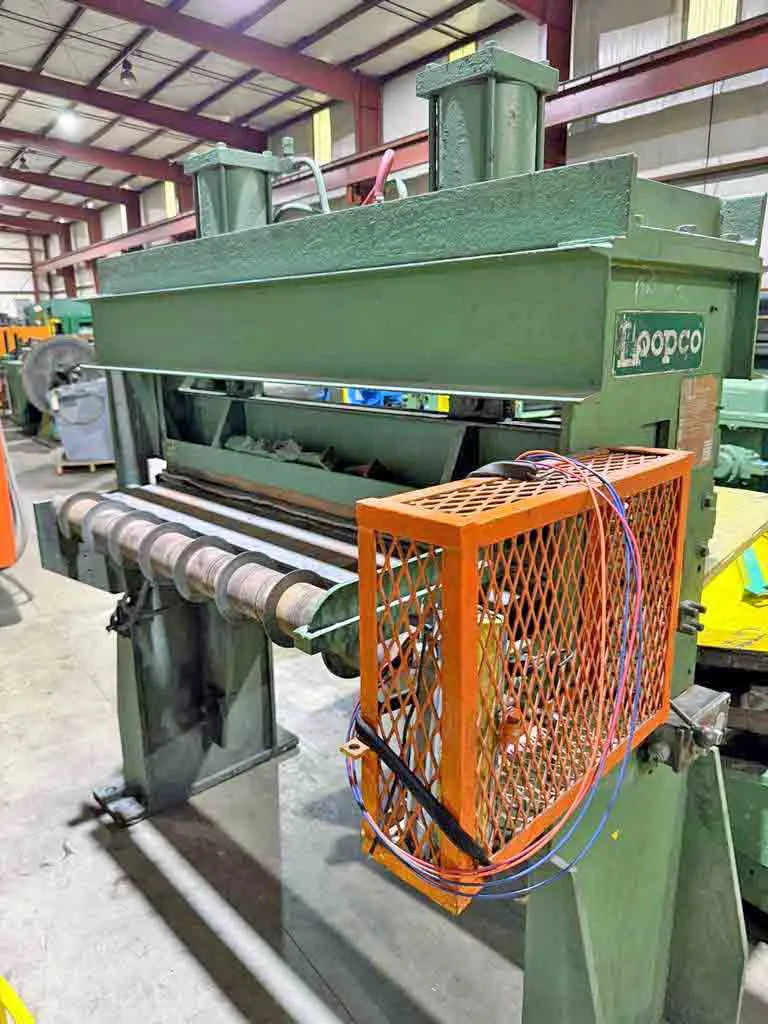

Tension Stand (Loopco)Drag-board type with air cylinders for pressure, entry separator tooling bar, exit passline roll

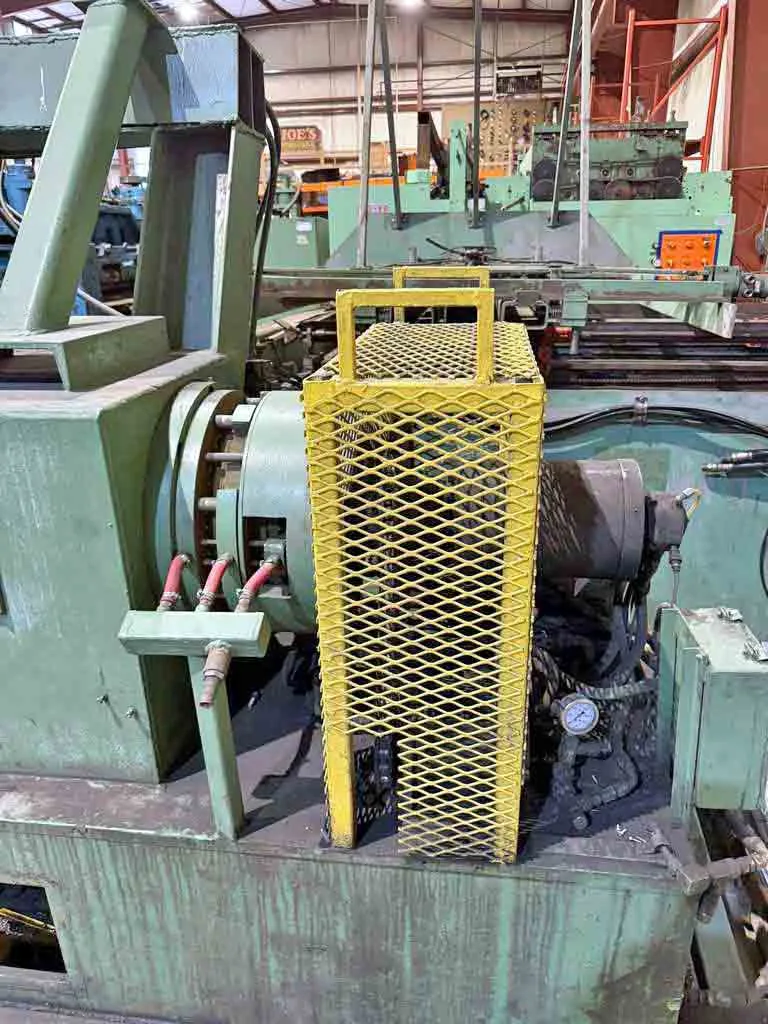

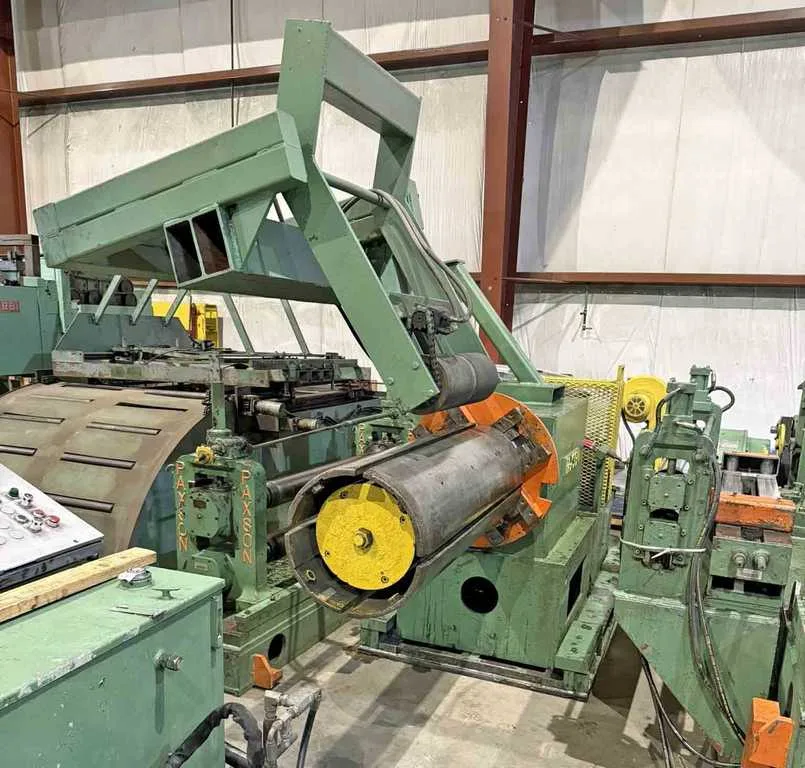

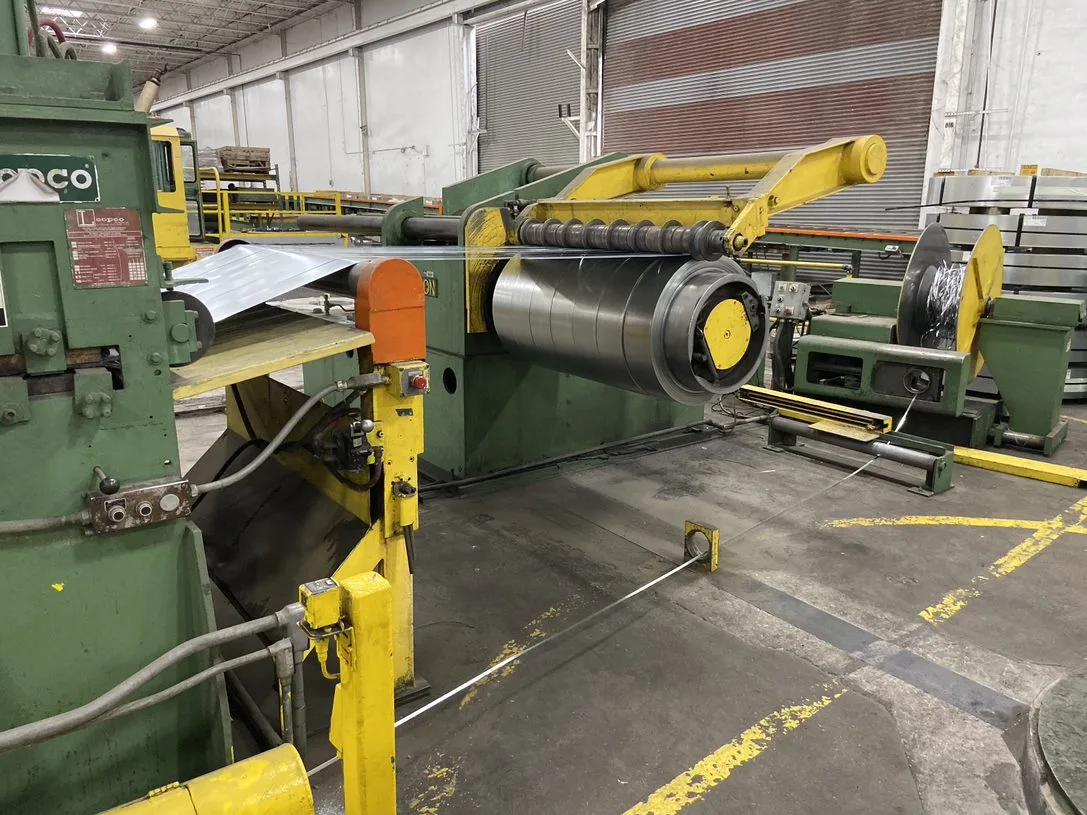

Recoiler20" dia. drum, 54" drum face, manual expand and gripper, hydraulic pushoff, overarm separator, Foote-Jones 16.692:1 reducer, 60 HP Reliance AC motor w/ belt drive (1770 RPM, 230/460 V)
Exit Coil Car48" wide deck, self-contained hydraulics, hand pendant control

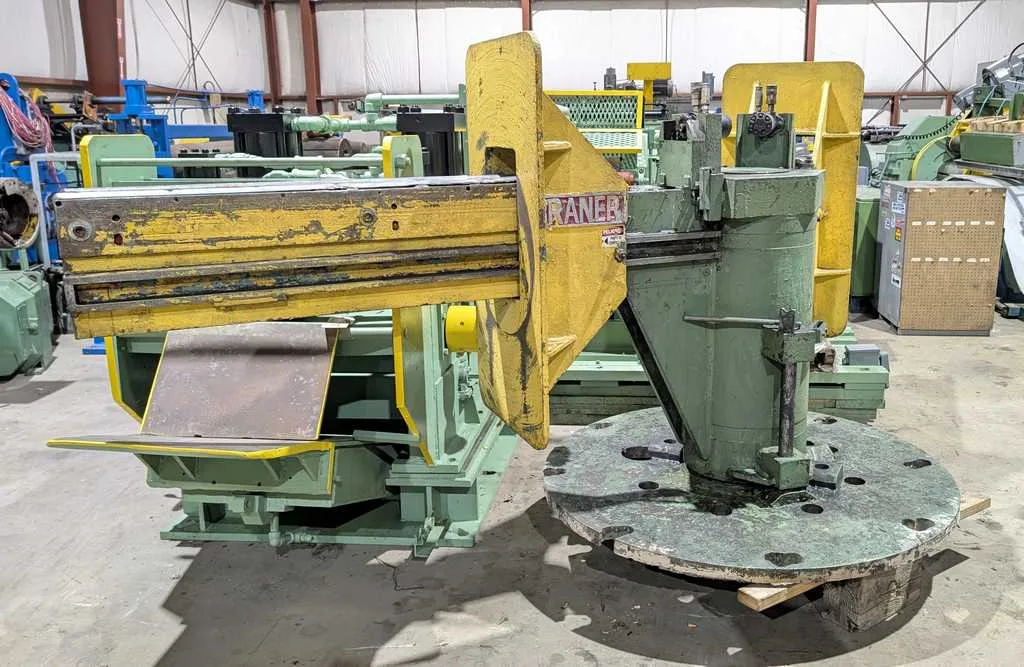

Exit Turnstile (Braner)Two arms, powered rotation, pushoffs
Main Operator's Control PanelIncluded

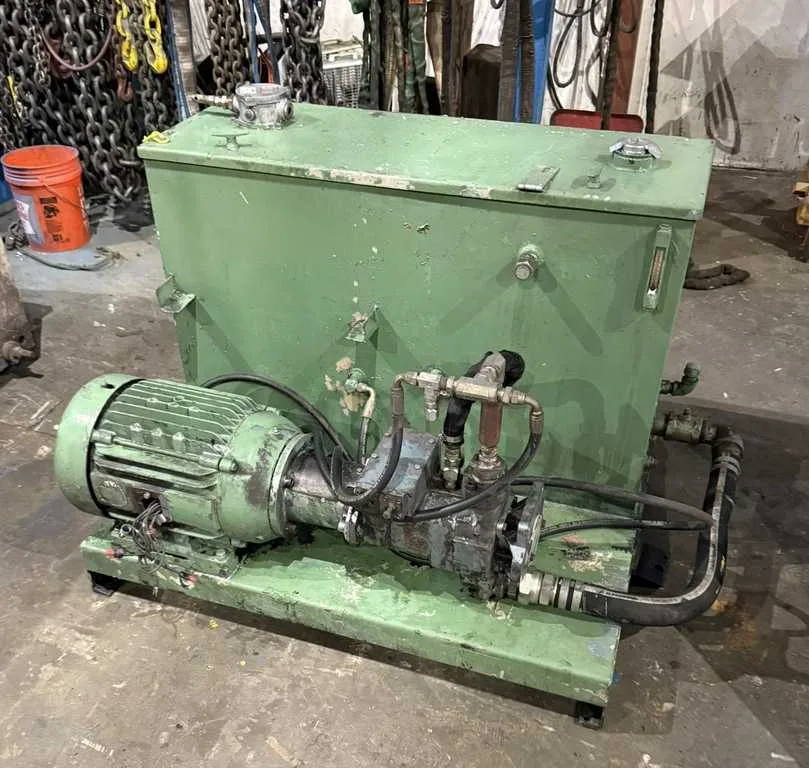

Main Hydraulic Power UnitIncluded

Contact for Pricing

Request a QuoteCall (847) 894-3434

Frequently Asked Questions

What is a coil slitting line used for?

A coil slitting line uncoils a master coil, runs it through driven rotary slitter heads that cut it lengthwise into narrower strips, then recoils the finished strips. This loop-type Paxson line handles coils up to 52" wide and 30,000 lbs at 350-400 FPM, and is used by steel service centers and fabricators to produce made-to-width coil.

What are the main components and drives on this Paxson line?

The line consists of a Paxson "L"-type above-ground entry coil car (7.5 HP), an expanding-mandrel uncoiler with a water-cooled drag brake, a hydraulic peeler table, a driven slitter with 52" arbor face, two drop-in heads and 6" arbors on a 75 HP Reliance DC drive, a looping pit and cross-over table, a self-dumping scrap winder, a Loopco drag-board tension stand, a recoiler with a 20" x 54" face drum on a 60 HP Reliance AC drive with a Foote-Jones reducer, an exit coil car, and a Braner two-arm exit turnstile.

What coil sizes and speed can this line run, and are the controls updated?

The line runs coils up to 52" wide and 30,000 lbs, with a 20" I.D. and 72" O.D., left to right, at 350-400 FPM. The controls were upgraded in 2009 with a new PLC and control pulpit.

What condition is this slitting line in and where is it located?

This is a used Paxson slitting line (Ref #10846-C) currently in storage in Toledo, OH. It is available for inspection by appointment; contact Gerrard Group for details, rigging, and transportation.
