54" x 6.50" x 20,000# Stamco Coil Slitting Line

Ref #: 11849-HK — Stamco

Line Specifications

ManufacturerStamco
Weight Capacity20,000 lbs
Coil Width54"
Arbor Diameter6.50"
Coil I.D. (Entry)16" – 20"
Coil I.D. (Exit)20"
Coil O.D.72"
Line DirectionLeft to Right
Line Speed250 / 300 FPM (Constant)
Condition / LocationUsed — Removed and in Storage, Toledo, OH

Line Components

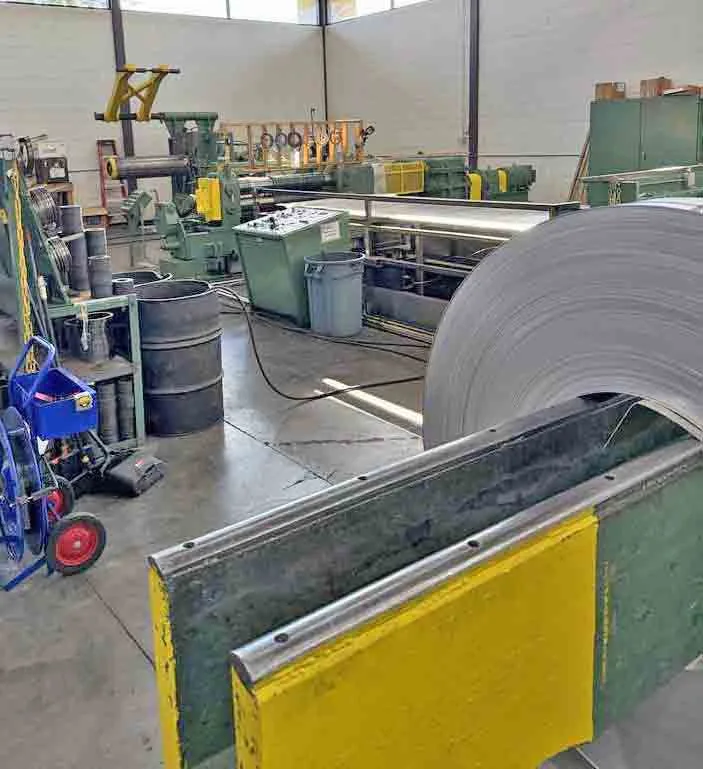

Entry Coil Car (Paxson)Hydraulic motorized screw jack lift, hydraulic motorized travel, removable riser for small coil O.D.s, self-contained hydraulic power unit, hand pendant control

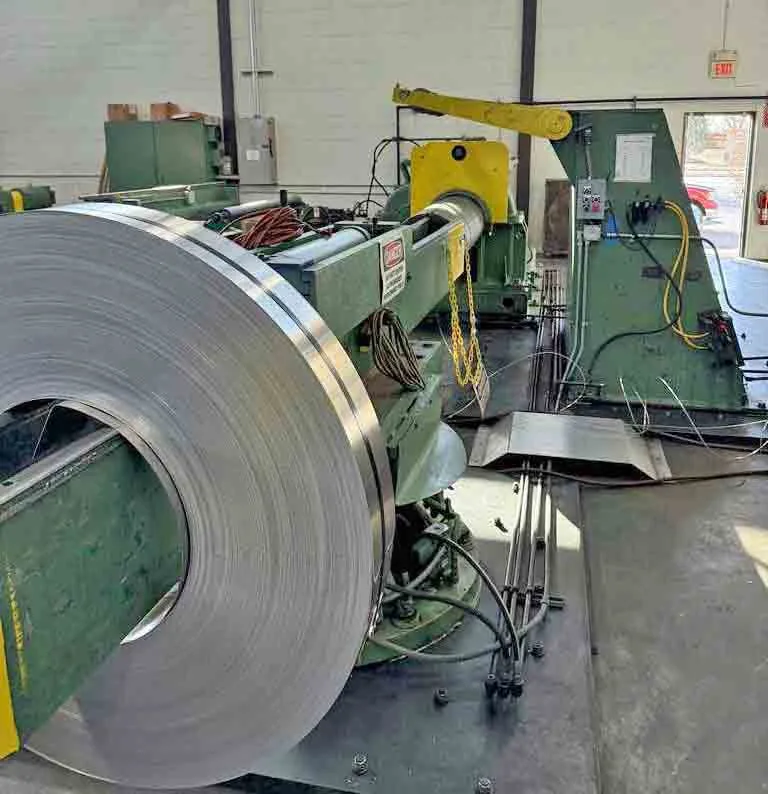

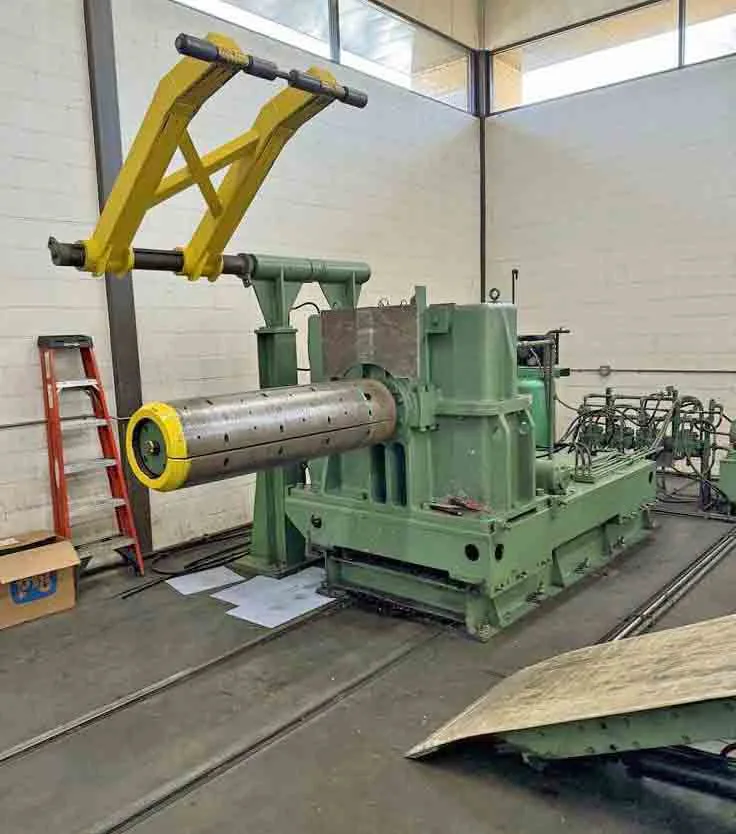

Mandrel Uncoiler56" face mandrel, hydraulic expansion, slide base, (2) Fawick water-cooled brakes, 1.5 HP AC feedup gearmotor (220/440 V), Stamco 5.4:1 reducer, lube pump; 52" passline; shipping weight 17,500#
Overarm Holddown RollFree standing

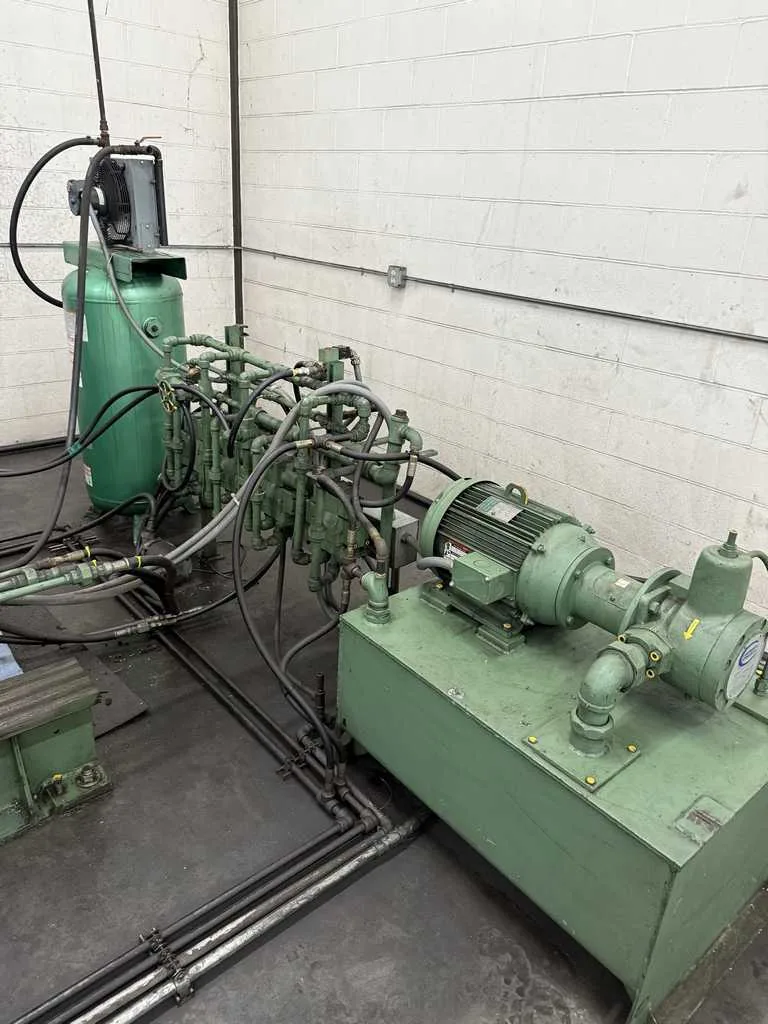

Entry Hydraulic Power Unit20 HP Baldor AC motor (1760 RPM, 230/460 V), 60-gallon tank, valve stand

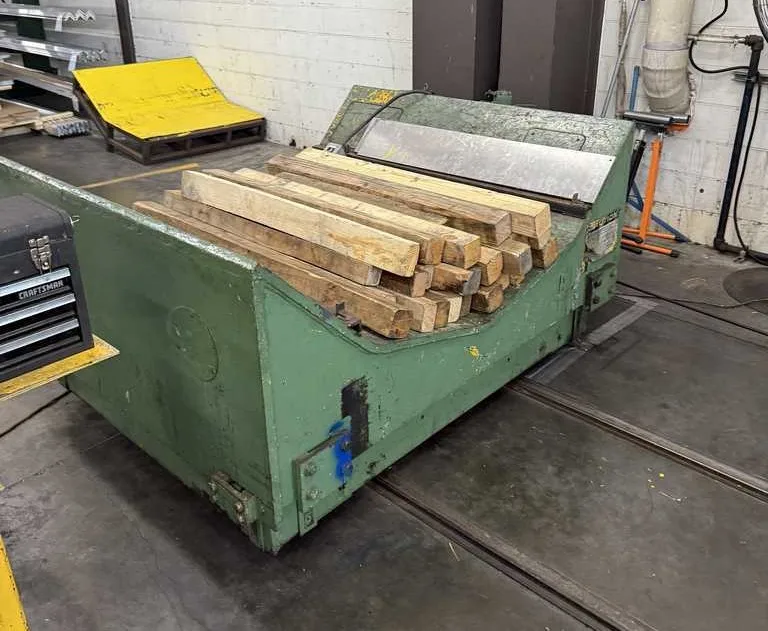

Peeler TableHydraulic lift and extend, 60" wide passline roll

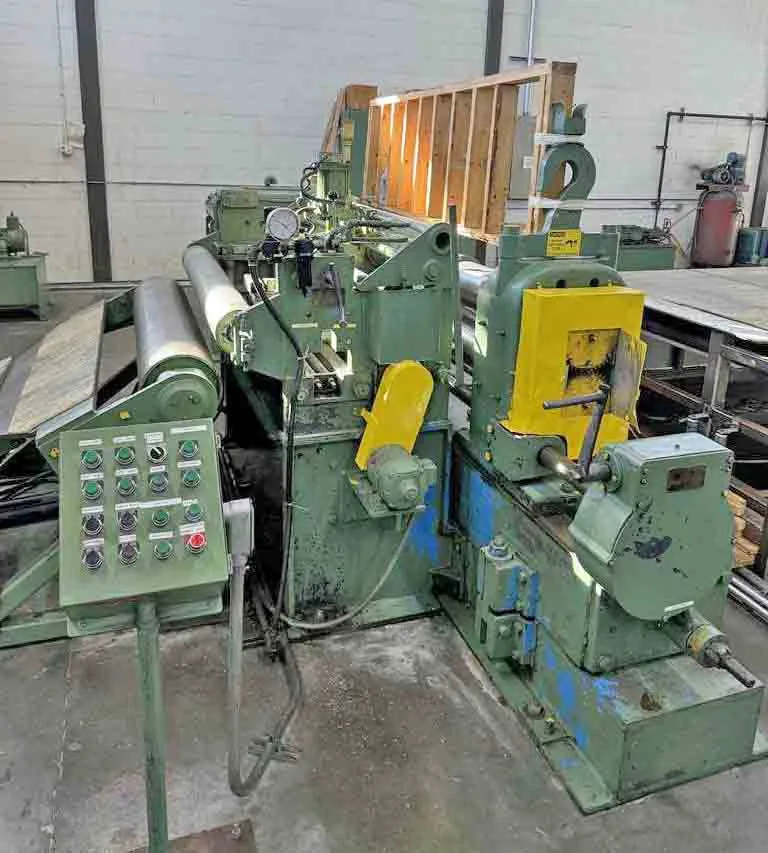

Slitter Entry UnitEntry passline roll, adjustable roller side guides, driven pinch rolls

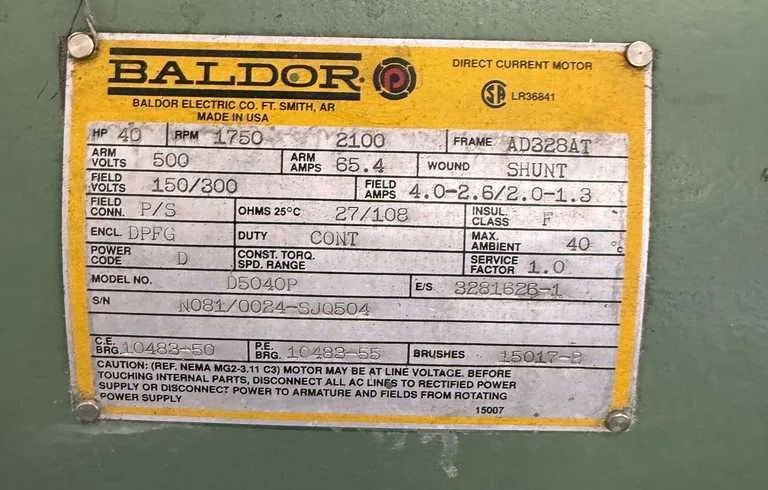

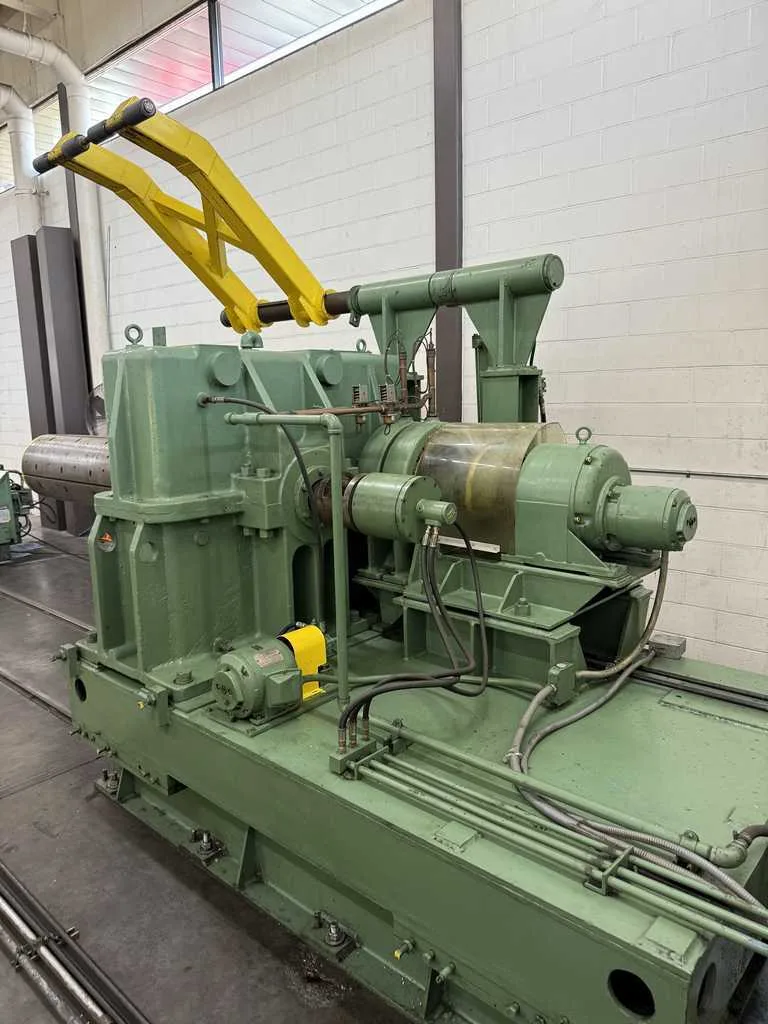

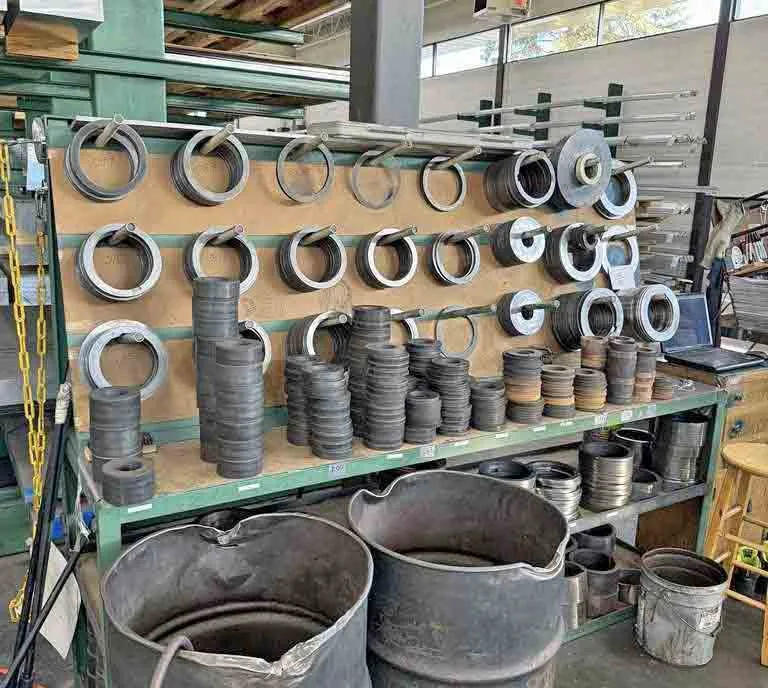

Removable Head Slitter6.50" dia. x 60" face arbors, eccentric arbor adjustment, 40 HP Baldor DC motor (1750/2100 RPM, 500 V), Stamco 3.2:1 reducer/pinion box, Hansen 8.3:1 secondary reducer, slitter tooling

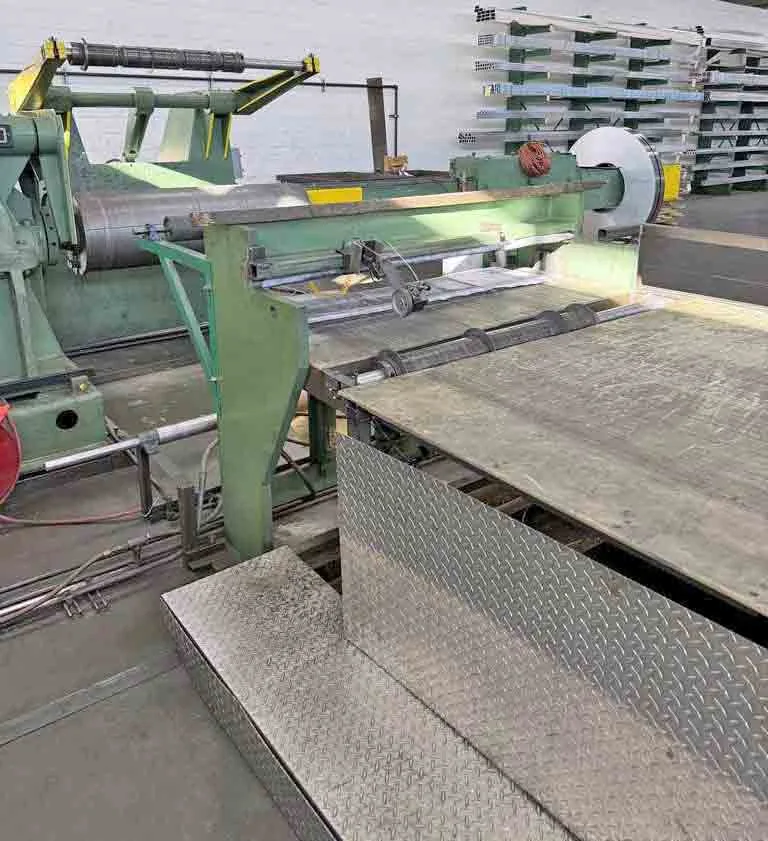

Drag Board Tension StandEntry separator tooling bar, exit passline roll, (3) air-cylinder tension control

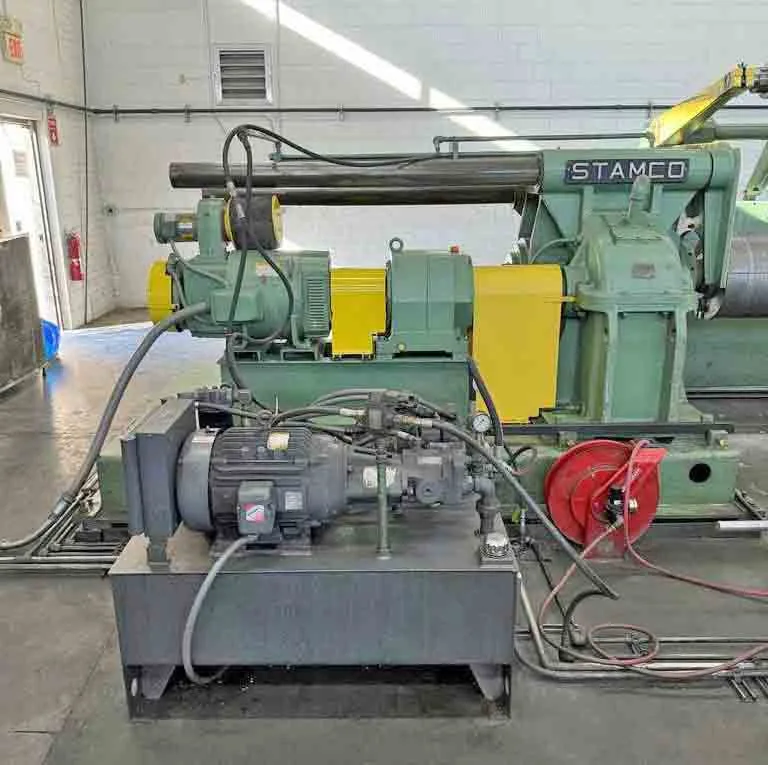

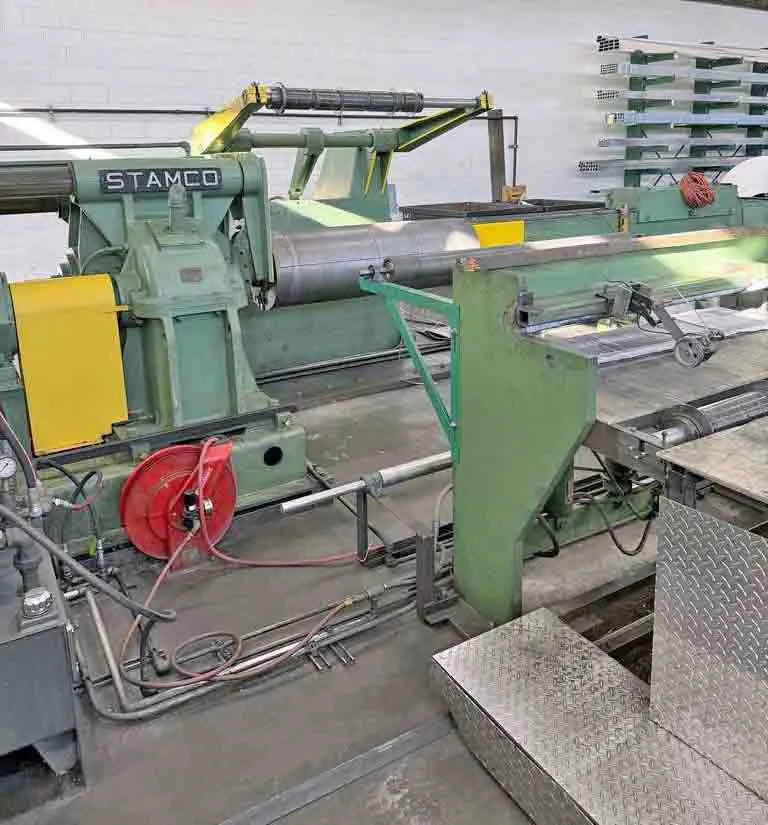

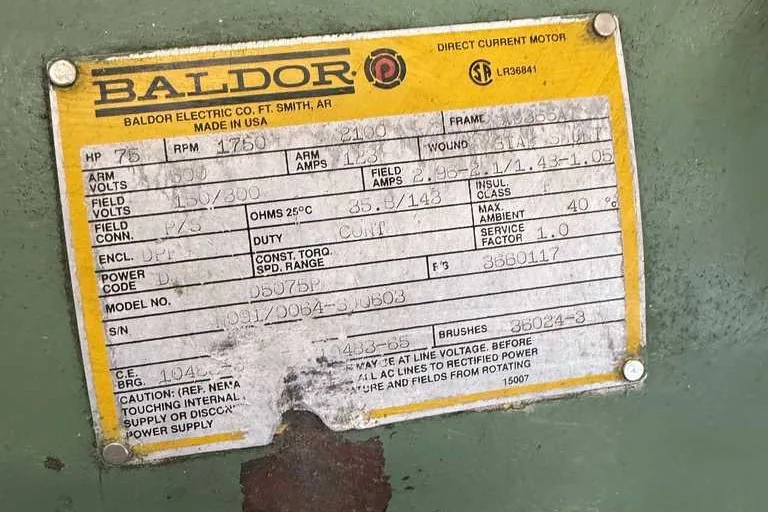

Recoiler20" dia. x 60" face drum, manual clamp and expansion, hydraulic pushoff, 75 HP Baldor DC motor (1750/2100 RPM, 500 V) w/ blower, Stamco 3.697:1 integral reducer, Hansen 10:1 secondary reducer; shipping weight 17,000#
Overarm SeparatorFree standing
Paper UnwinderIncluded

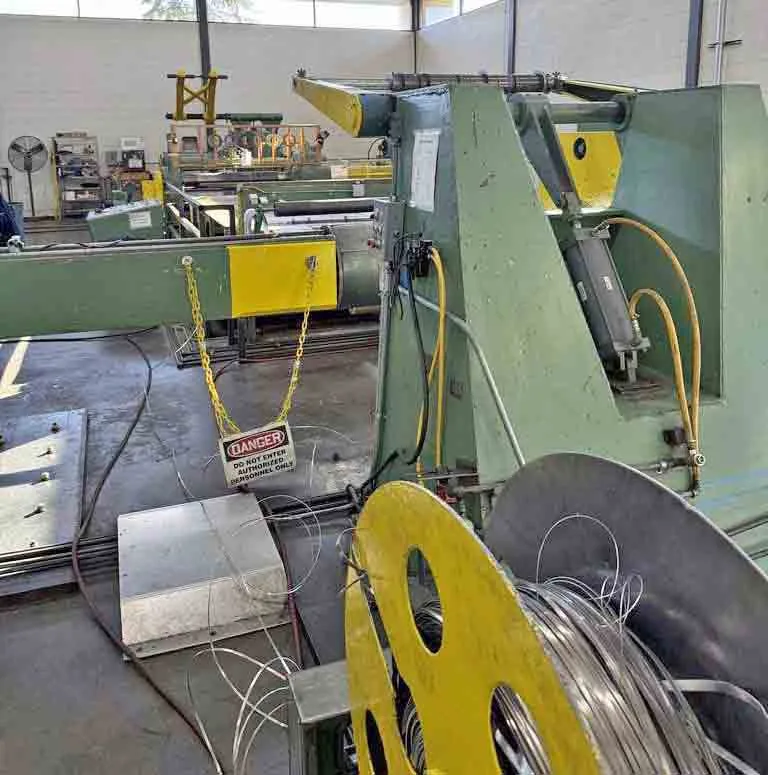

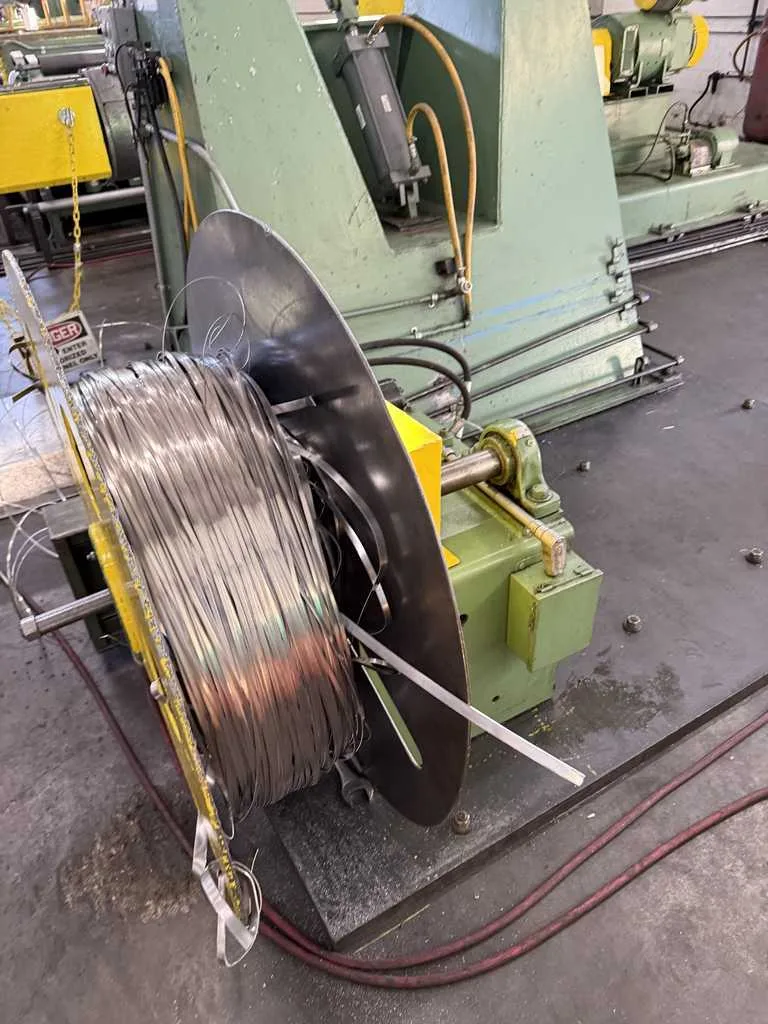

Scrap WinderHydraulic motor drive, level wind, manual ball removal
Exit Hydraulic Power UnitIncluded

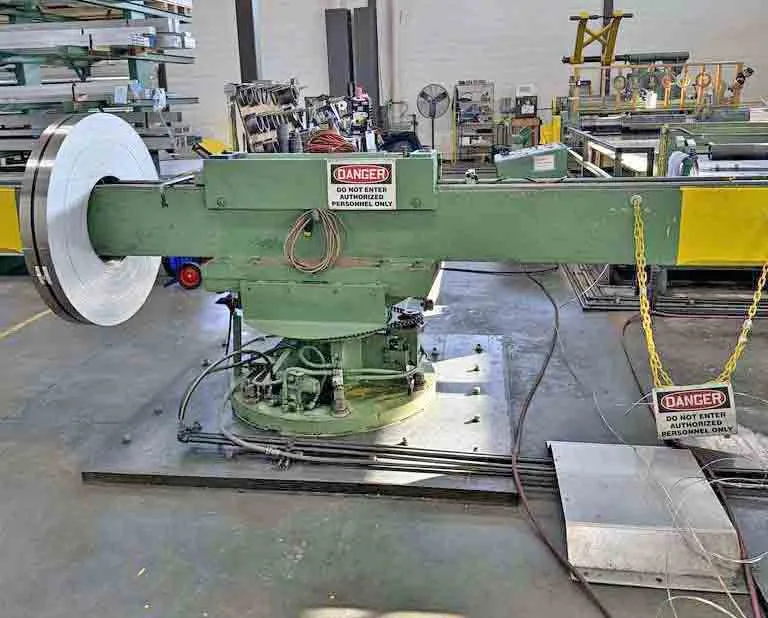

2-Arm Exit TurnstileC-hook type arms, 6.5" W x 12" H slot, 67" long arms, 18" min I.D., 47" floor to top of arm, hydraulic pushoff, power rotation; overall 184" L x 48" W x 54" H; shipping weight 11,000#

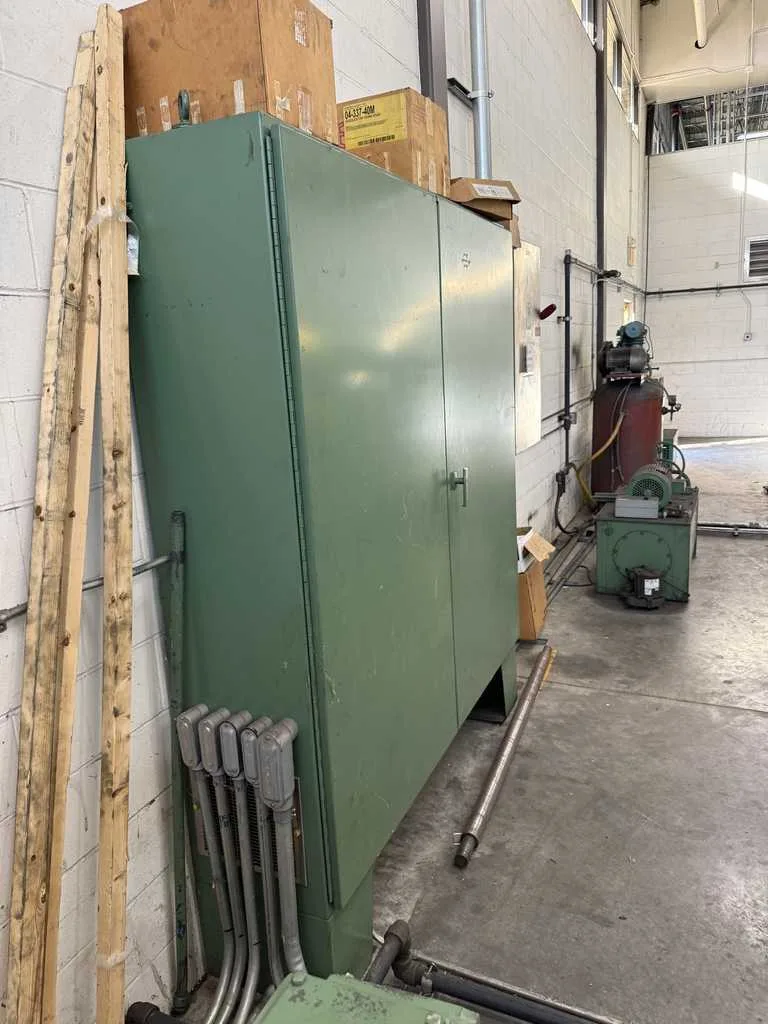

Operator ControlsIncluded

Contact for Pricing

Request a QuoteCall (847) 894-3434

Frequently Asked Questions

What is a coil slitting line used for?

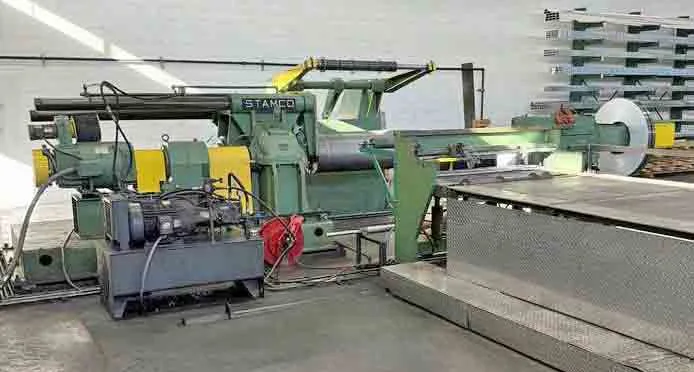

A coil slitting line uncoils a master coil, passes it through rotary slitter knives that cut it lengthwise into narrower strips (mults), then recoils the finished strips. This 54" Stamco line handles coils up to 54" wide and 20,000 lbs, with coil O.D. up to 72", running at a constant 250/300 FPM. It is used by service centers and fabricators to produce made-to-width steel and aluminum coil.

What are the main components and drives on this Stamco line?

The line consists of a Paxson entry coil car, a mandrel uncoiler with a 56" face and two Fawick water-cooled brakes, a peeler table, a removable-head slitter with 6.50" dia. x 60" face arbors driven by a 40 HP Baldor DC motor, a drag-board tension stand, a recoiler with a 20" x 60" face drum driven by a 75 HP Baldor DC motor, an overarm separator, paper unwinder, scrap winder, and a 2-arm exit turnstile with C-hook arms.

What coil sizes can this line process?

The line runs coils up to 54" wide and 20,000 lbs, with a coil O.D. up to 72". Coil I.D. is 16"–20" at entry and 20" at exit. Line direction is left to right. The slitter arbors are 6.50" diameter with a 60" face.

What condition is this slitting line in and where is it located?

This is a used Stamco slitting line (Ref #11849-HK) that has been removed and is in storage in Toledo, OH. It is available for inspection by appointment; contact Gerrard Group for details, rigging, and transportation.
